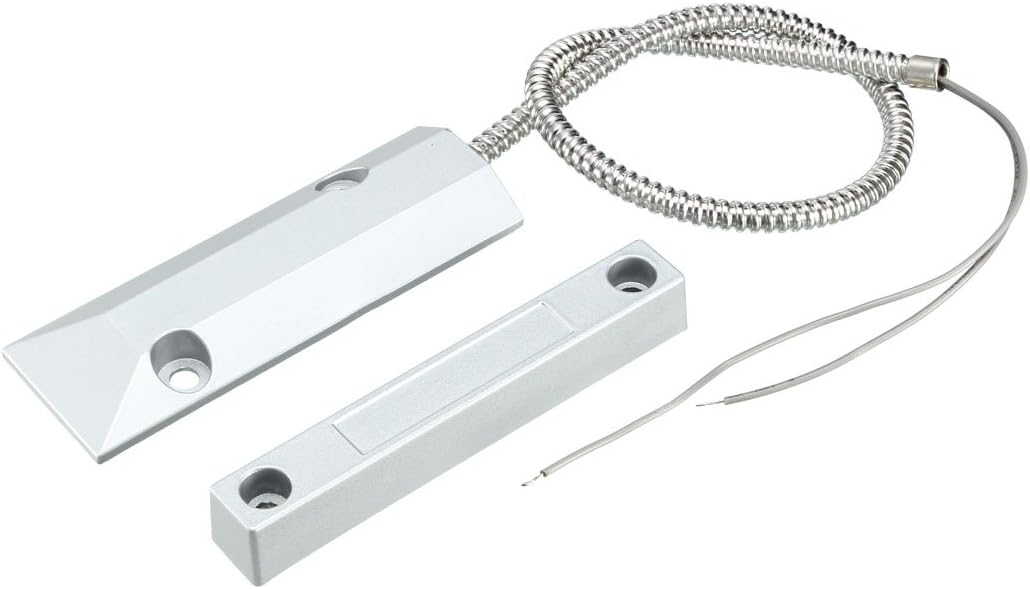

uxcell Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for N.C. Applications OC-55

Overview

• Operation Mode : Off
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Contact Type : Normally Closed
• Connector Type : Screws
• Brand : uxcell
• Terminal : Screw
• Item dimensions L x W x H : 5.51 x 3.94 x 0.79 inches
• Circuit Type : 1-way
• Mounting Type : Door Mount
• Switch Type Magnetic Reed Switch : Material Stainless Steel
• : Switch Type Magnetic Reed Switch
• : Material Stainless Steel

About this item

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 40~50mm

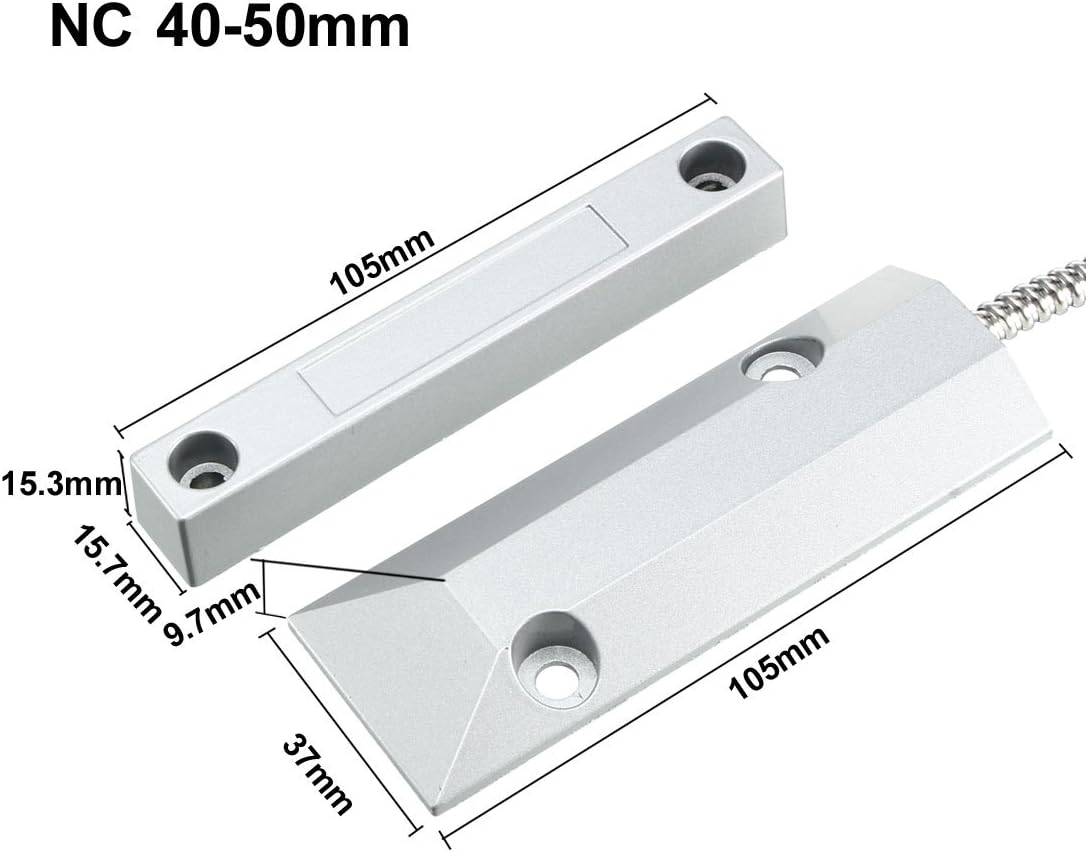

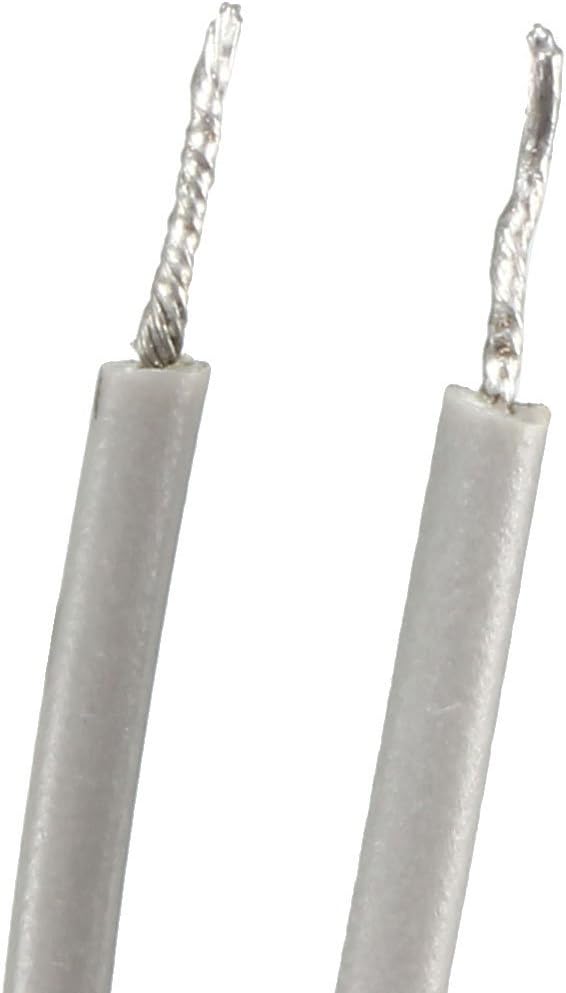

• [Dimension] - Cable Length: 50cm/19.7"; Total Size: 105 x 37 x 9.7mm, 105 x 15.7 x 15.3mm (L*W*H)

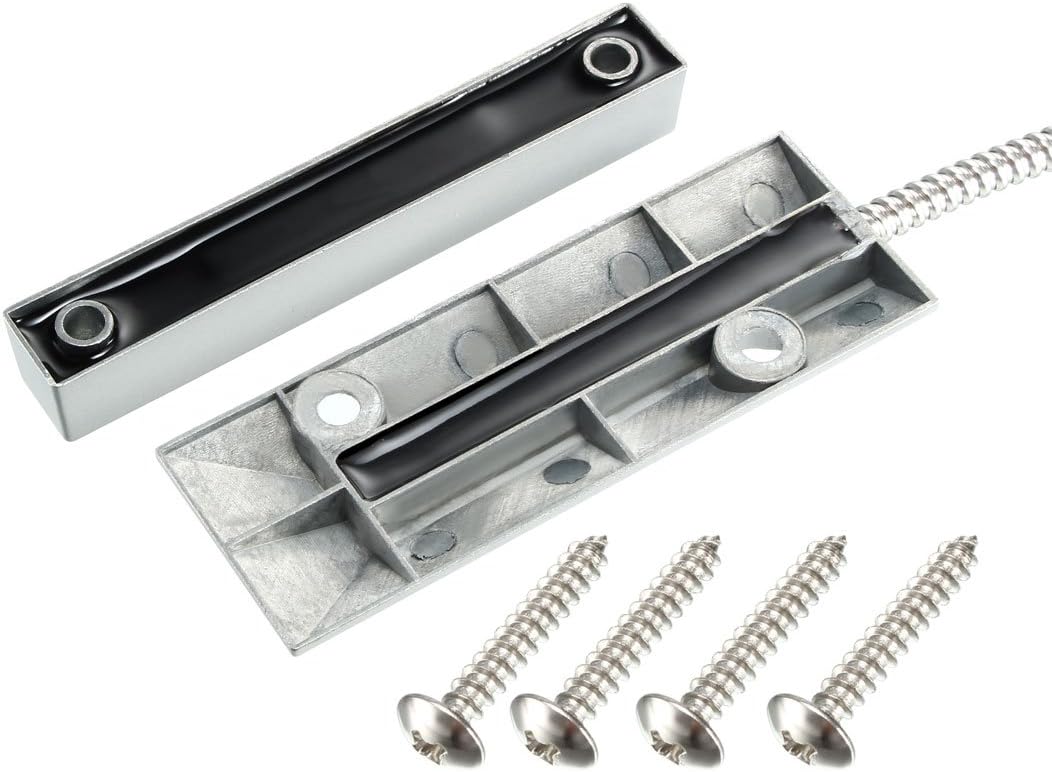

• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

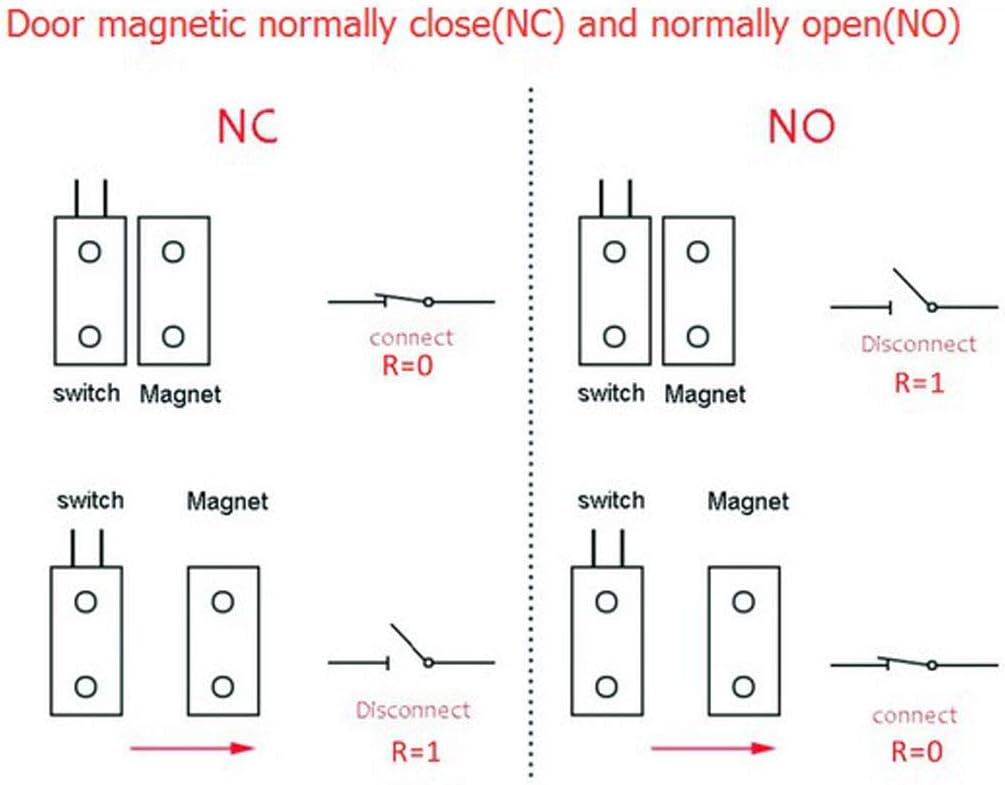

• [Normally Closed] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as a garage, shops, etc.
