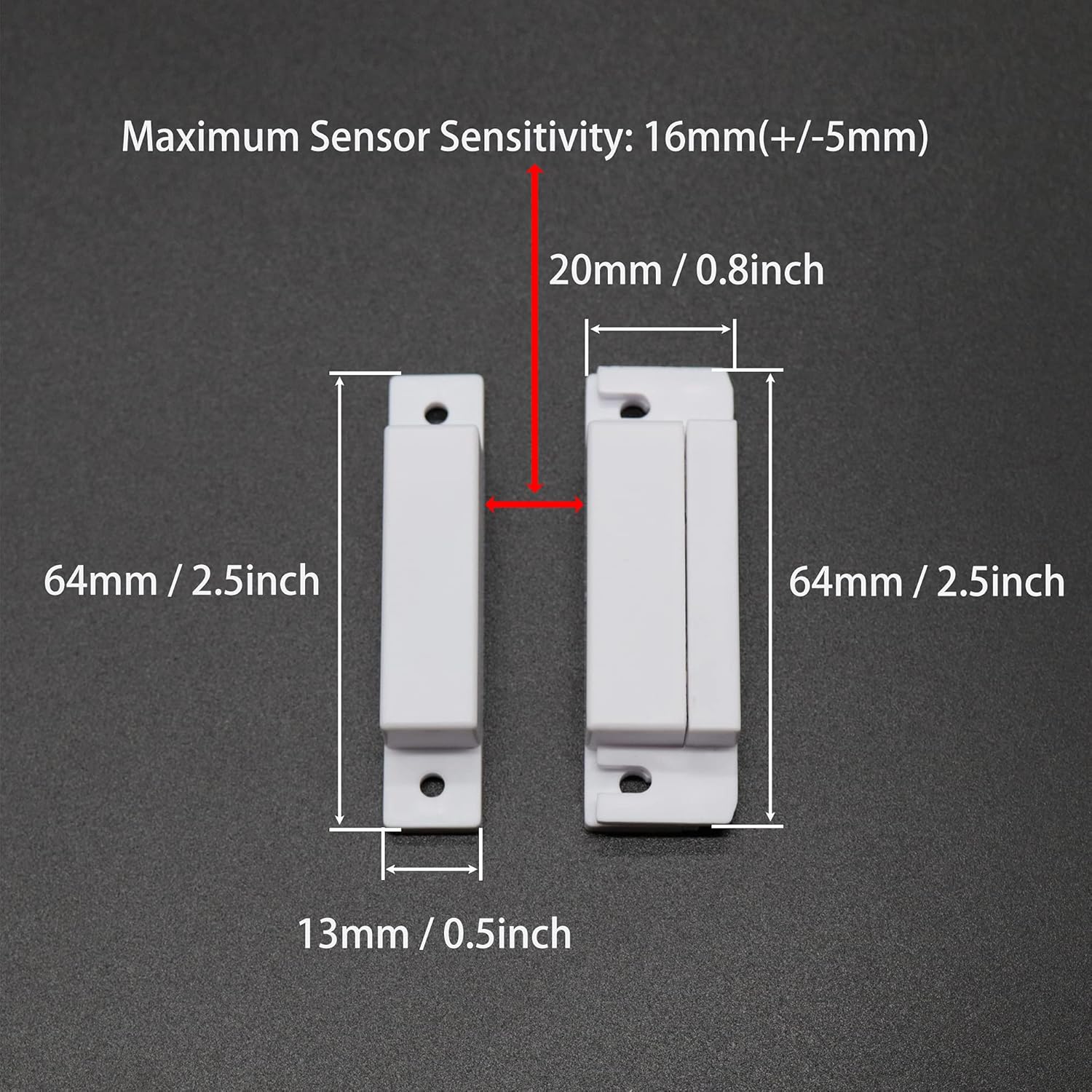

Item dimensions L x W x H : 6.3 x 5.51 x 0.59 inches
Material : Acrylonitrile Butadiene Styrene
Item Weight : 0.12 Kilograms
Style : NO
About this item
MATERIAL - The switch housing is made of ABS flame retardant material and the reed switch is resistant to high temperature and deformation.

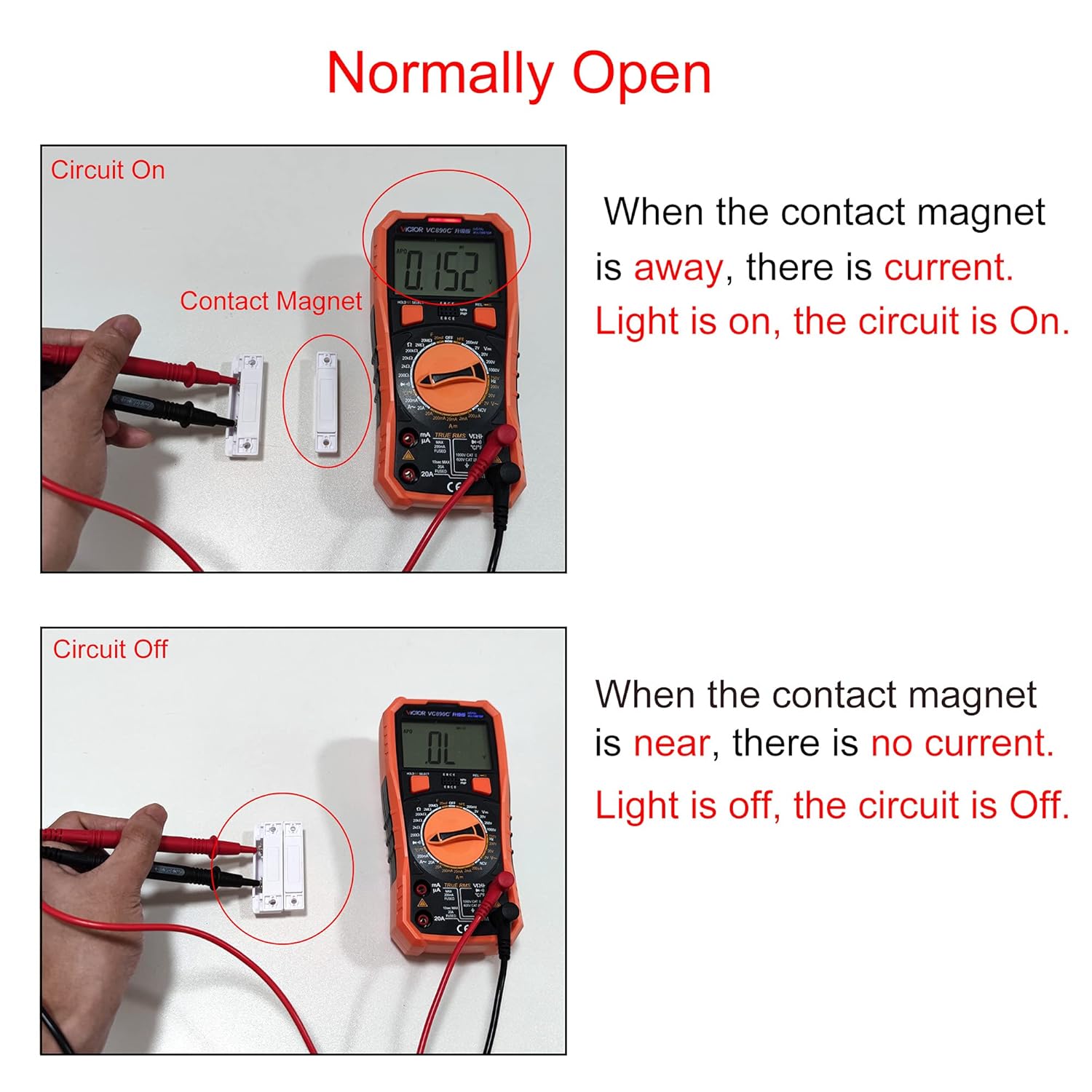

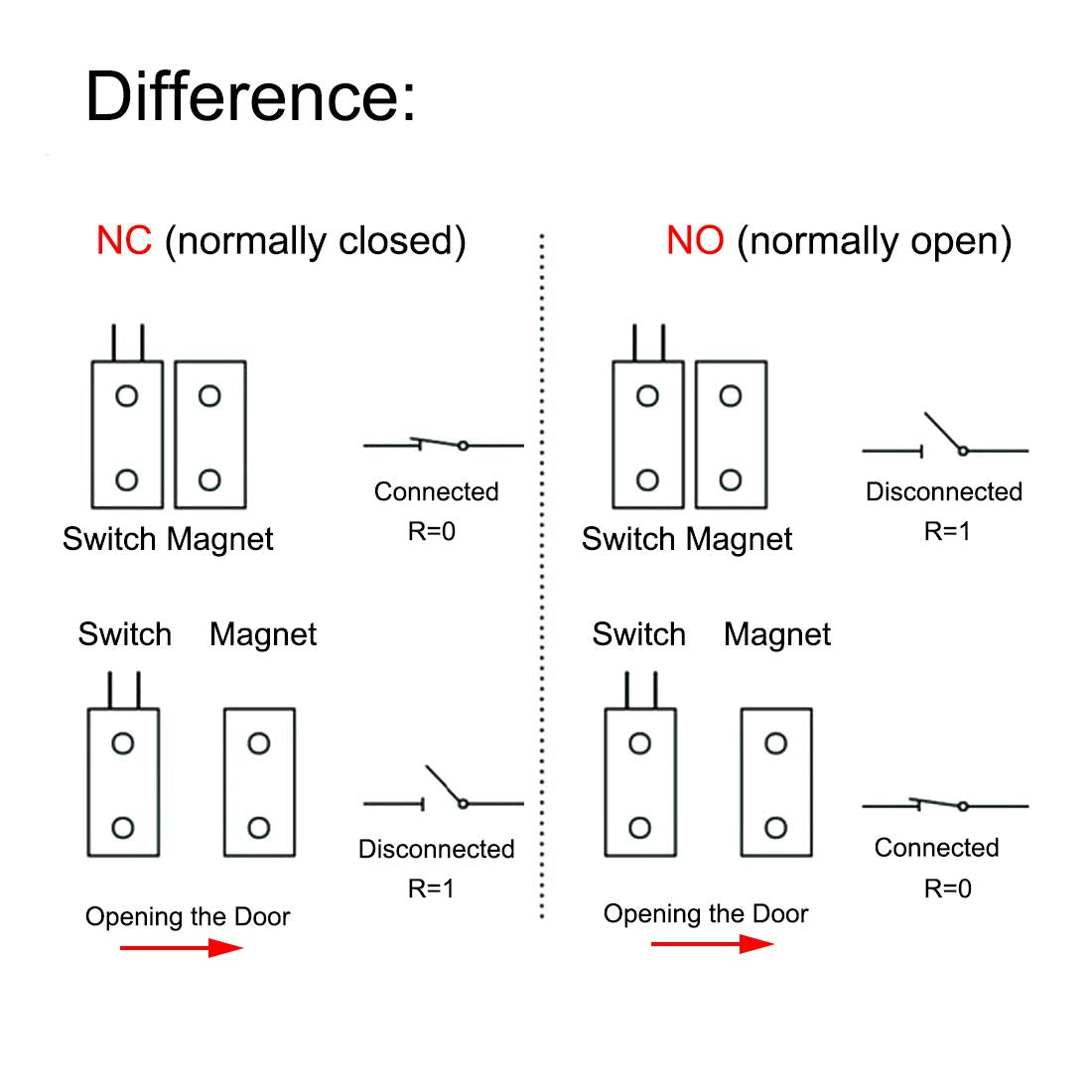

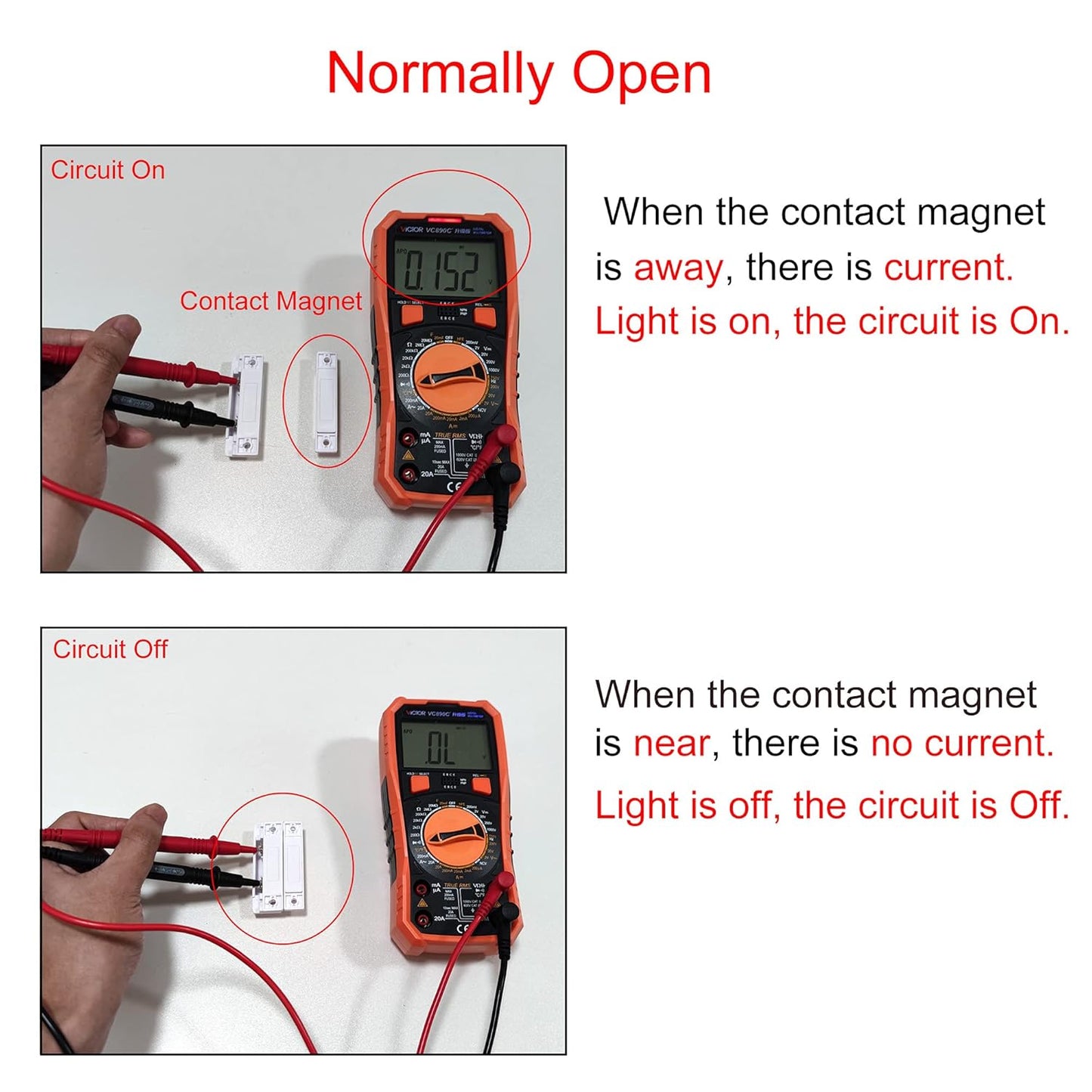

NORMALLY OPEN(NO) - When the switch is separated from the magnet, the circuit is conductive(light on); When the switch is close to the magnet, the circuit is not conductive(light off).
ACTUATION DISTANCE - 11-21mm transmitting distance. The contact has fast reflection and accurate detection.

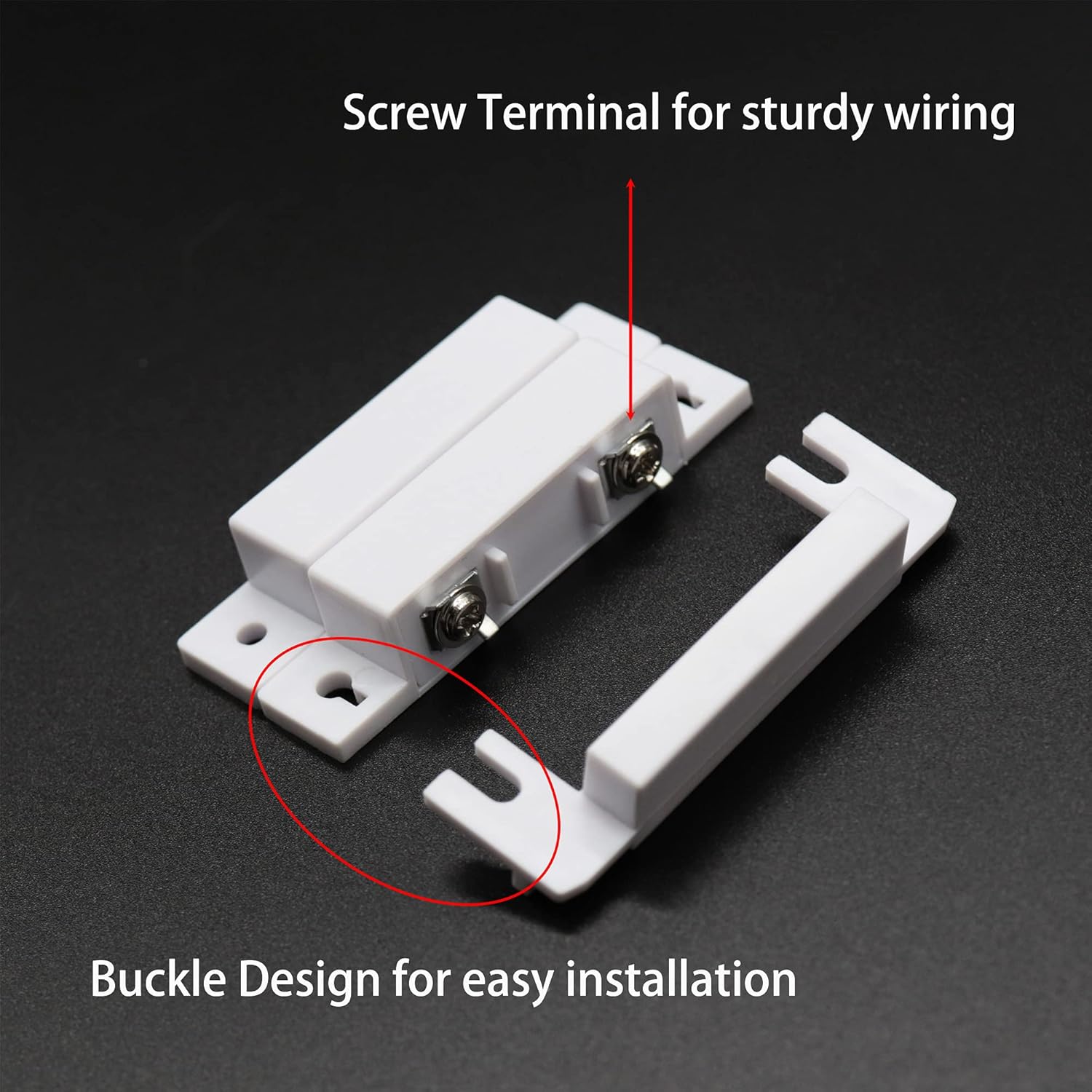

WORKING CONDITIONS - Load Current: 150mA; Maximum Voltage: 100V DC. The terminal has a detachable cover, which is more beautiful after installation.
WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.
