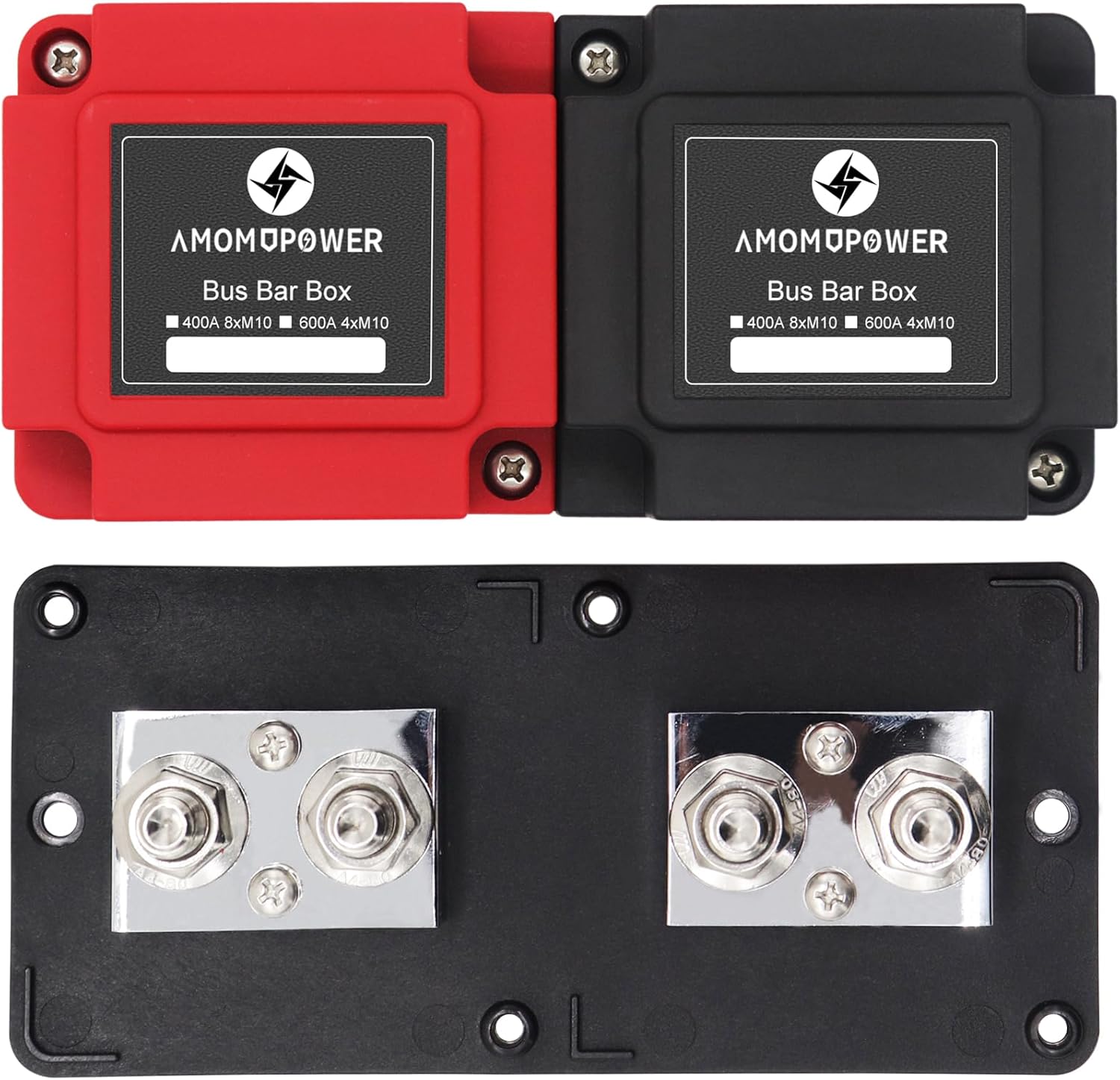

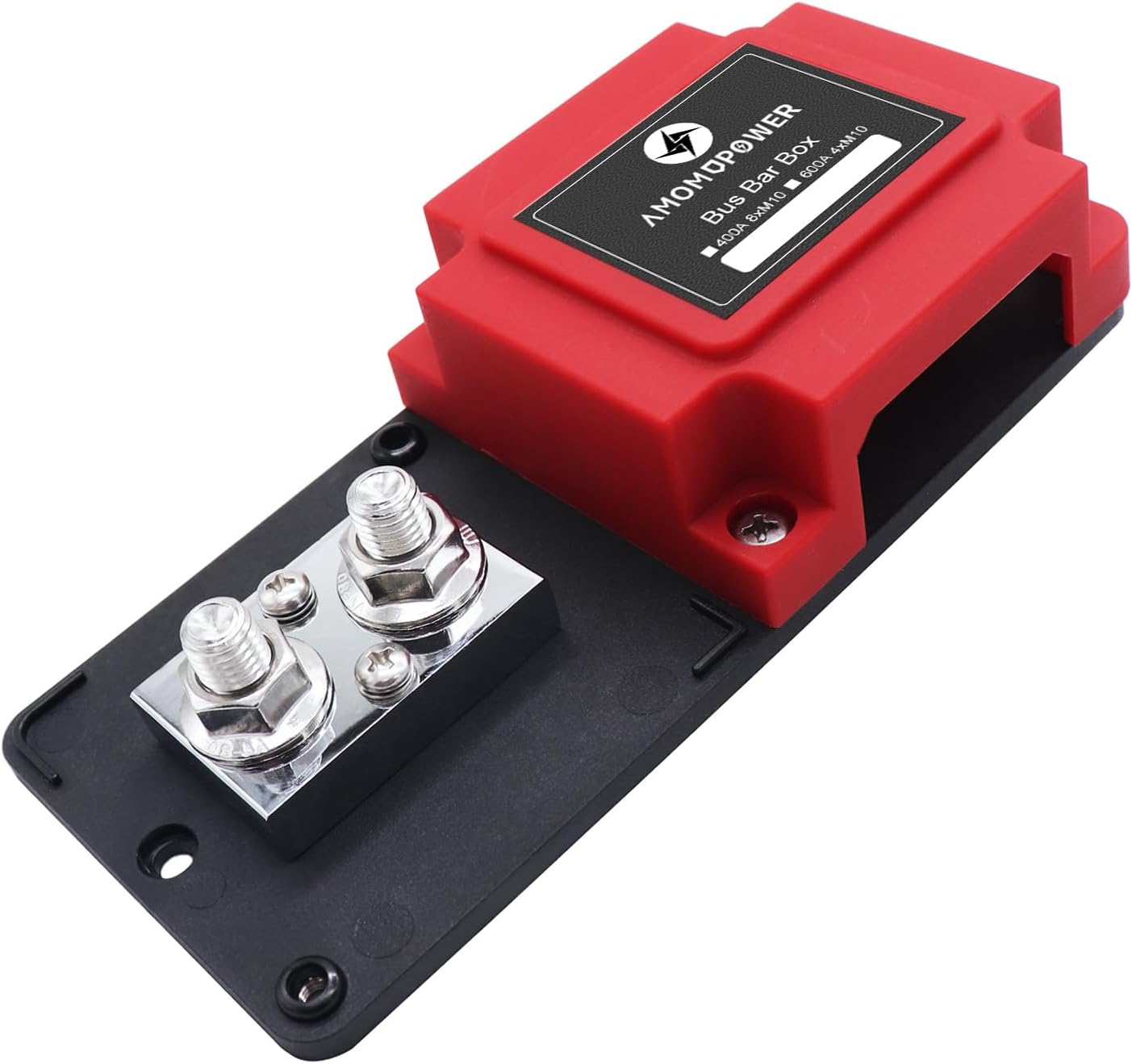

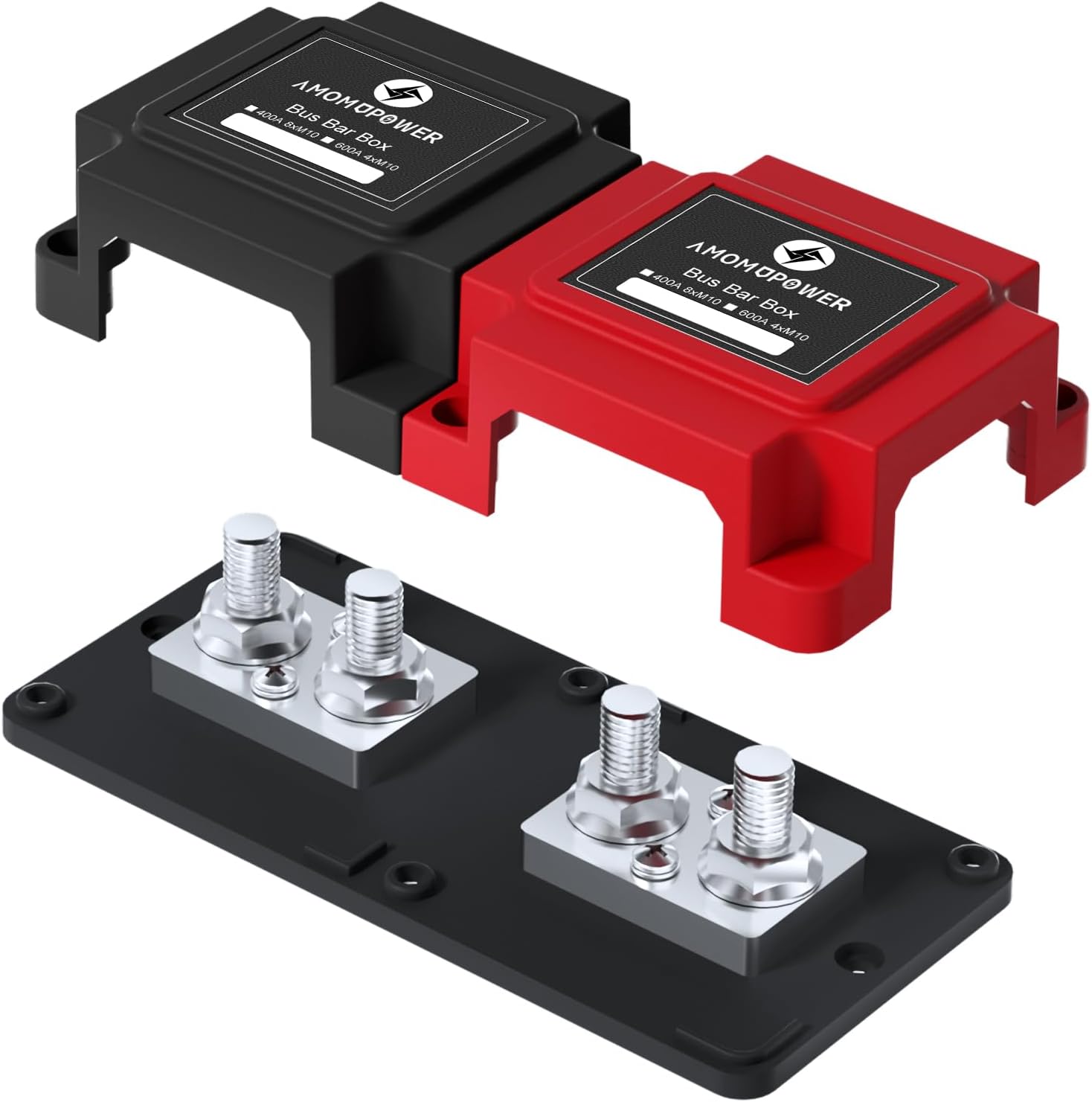

600A 48V Bus Bar Box 4 Stud (3/8 inch) M10 High Current Tin Plated Copper Distribution Block Positive Negative Independent Modules Electrical Battery Ground Buss Bar with Cover for RV Marine

Overview

• Current Rating : 600 Amps
• Connector Type : Screw
• Number Of Contacts : 4
• Mounting Type : Rack Mount
• Material : Nylon
• Color : 600A B&R
• Brand : AMOMD
• Voltage : 48 Volts
• Number Of Poles : 4

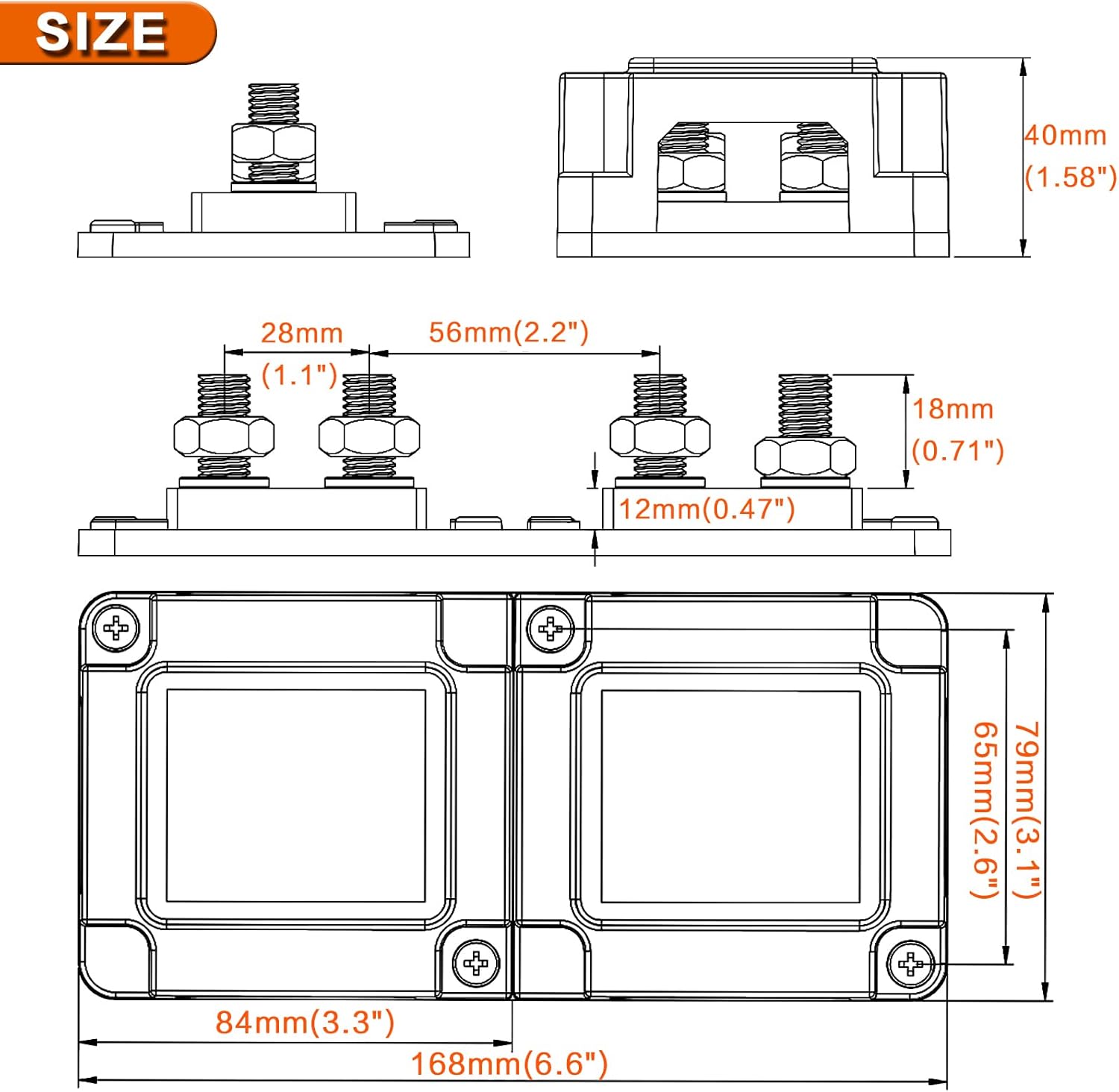

• Product Dimensions : 6.61"W x 1.57"H

About this item

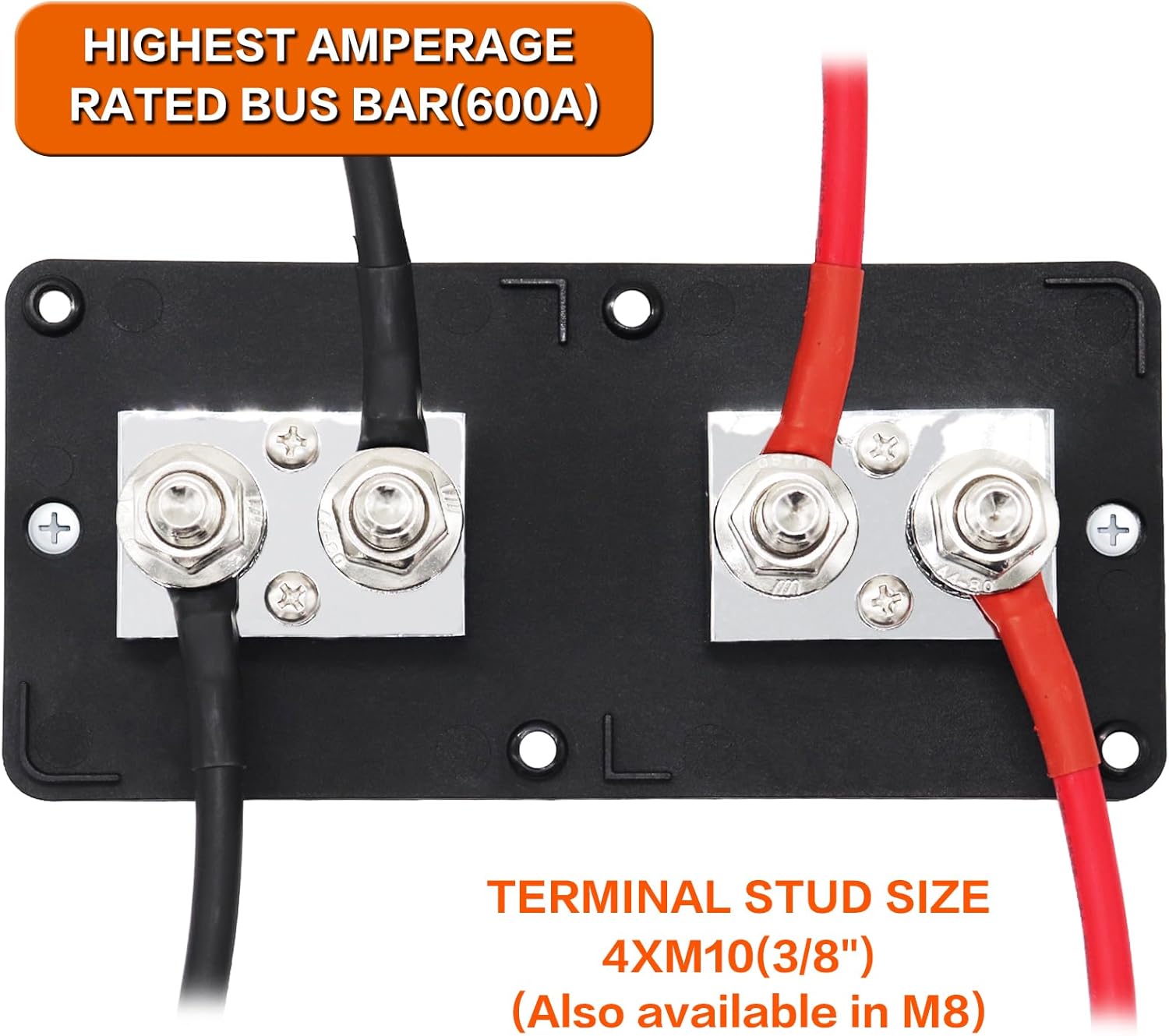

• Specifications:Max Voltage:48 V DC,Continuous Currents:600 Amp with 4 M10 terminal studs high current combiner box,modular box design,easy wiring configuration
• Material:The base is made of flame retardant nylon glass fiber reinforced,ensures great mechanical strength and durability;The power distribution block is made of electroplated tin red copper,which has good electric conduct performance and sturdy
• Safety:Our busbars ensures stable and dependable power transmission;Its multiple connection points and professional design guarantee safe circuit operation;One-piece serrated flange nuts ensure correct and secure connections
• Bus Bar:A high-power modular connection structure component with repeatable electrical performance,low impedance,anti-interference, good reliability,space saving,simple and quick assembly

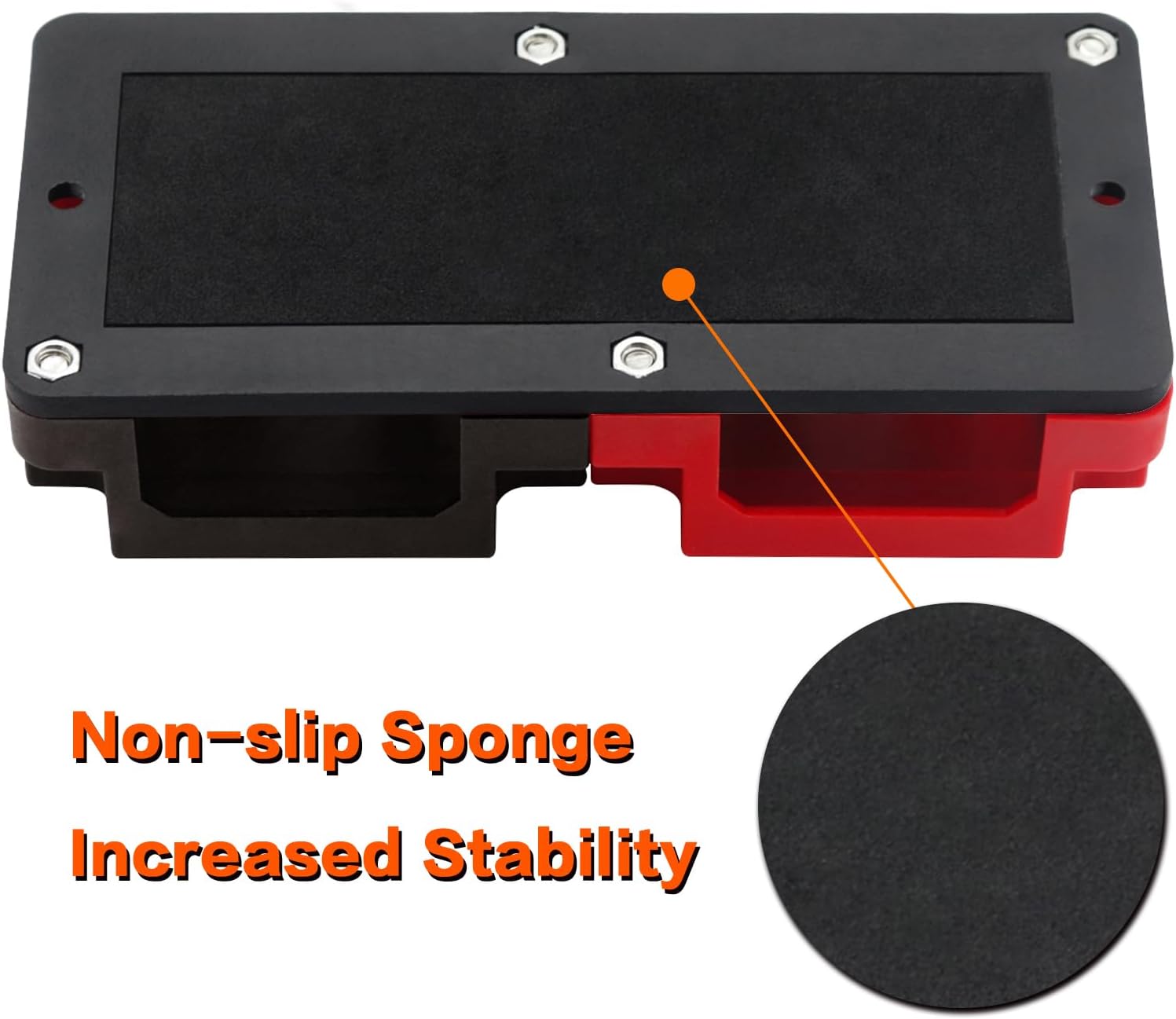

• Installation:Our busbar is suitable for installation on any plane;Stainless steel screws and nuts have corrosion resistance and rust resistance;The anti slip sponge on the base enhances stability. Reserved wiring holes on three sides for easy wiring
• Applications:busbar is widely utilized in power systems,industrial control,automation equipment,fire protection equipment,and other fields,providing dependable and efficient power transmission solutions for diverse applications
