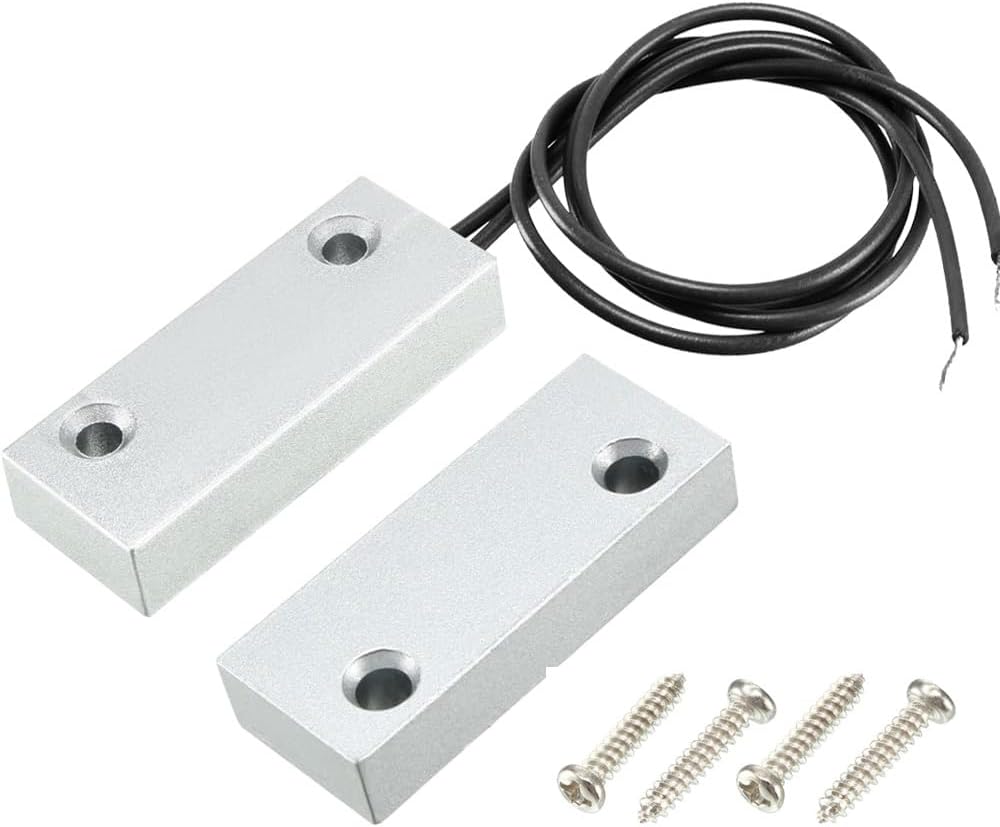

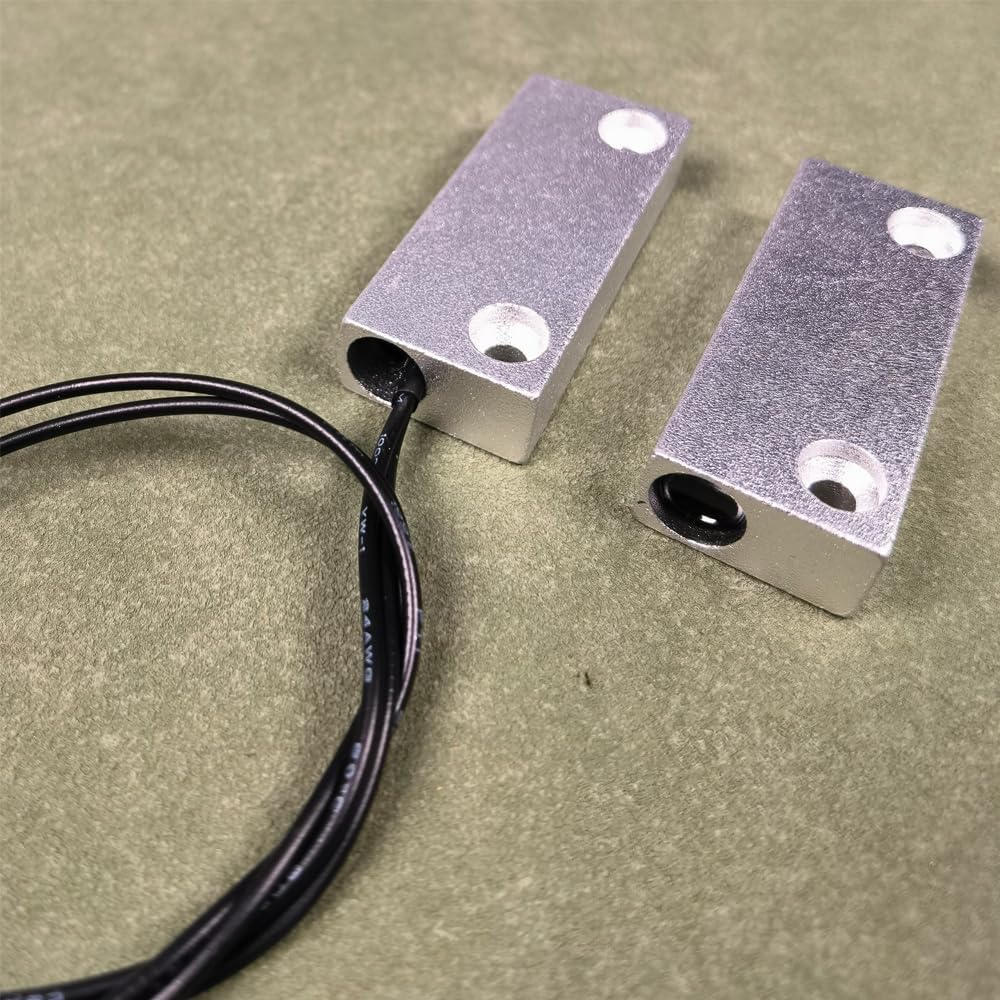

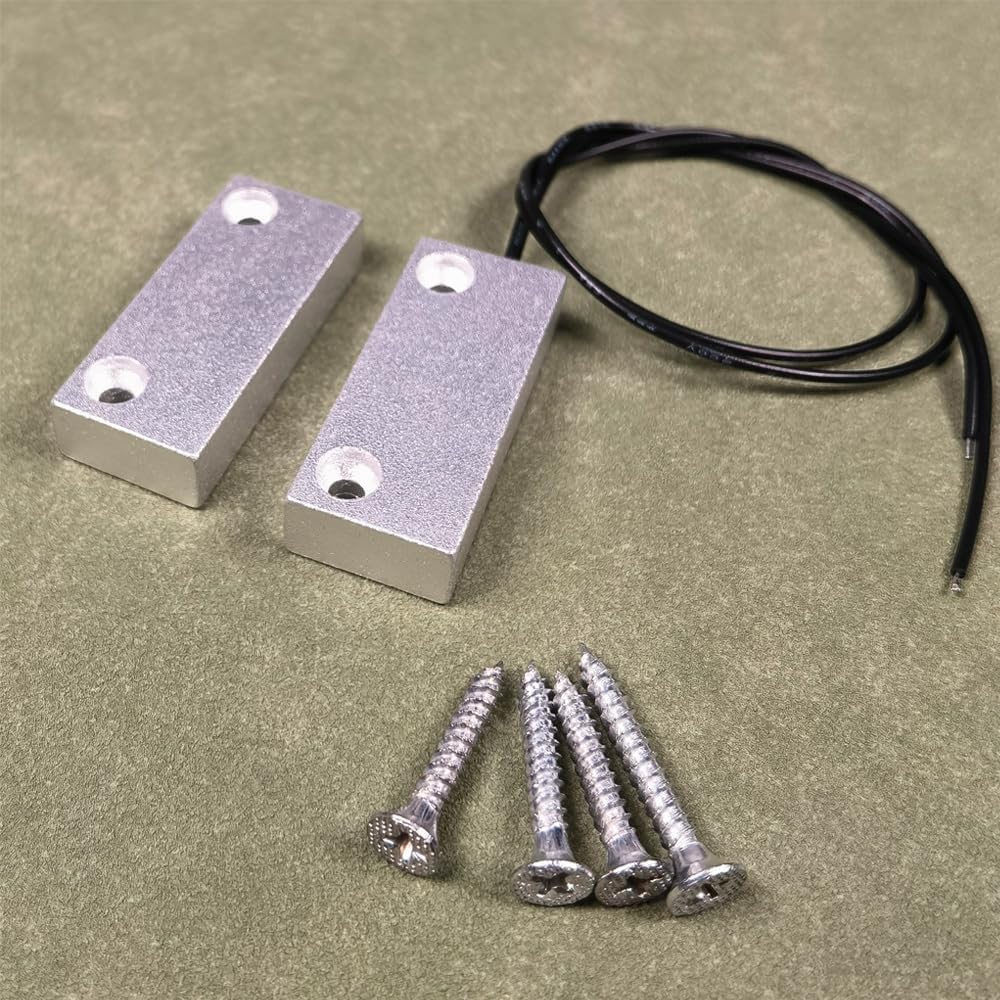

Rolling Door Contact Magnetic Reed Switch Alarm with 2 Wires for NC. Applications MC-52

Overview

• Operation Mode : automatic
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Contact Type : Normally Closed
• Connector Type : Wire Leads
• Brand : Gebildet
• Terminal : Through Hole
• Circuit Type : 1-way
• Mounting Type : Flush Mount
• Color : Silver-E1280T
• Switch Type Reed Switch : Material Zinc Alloy
• : Switch Type Reed Switch
• : Material Zinc Alloy

About this item

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 15mm

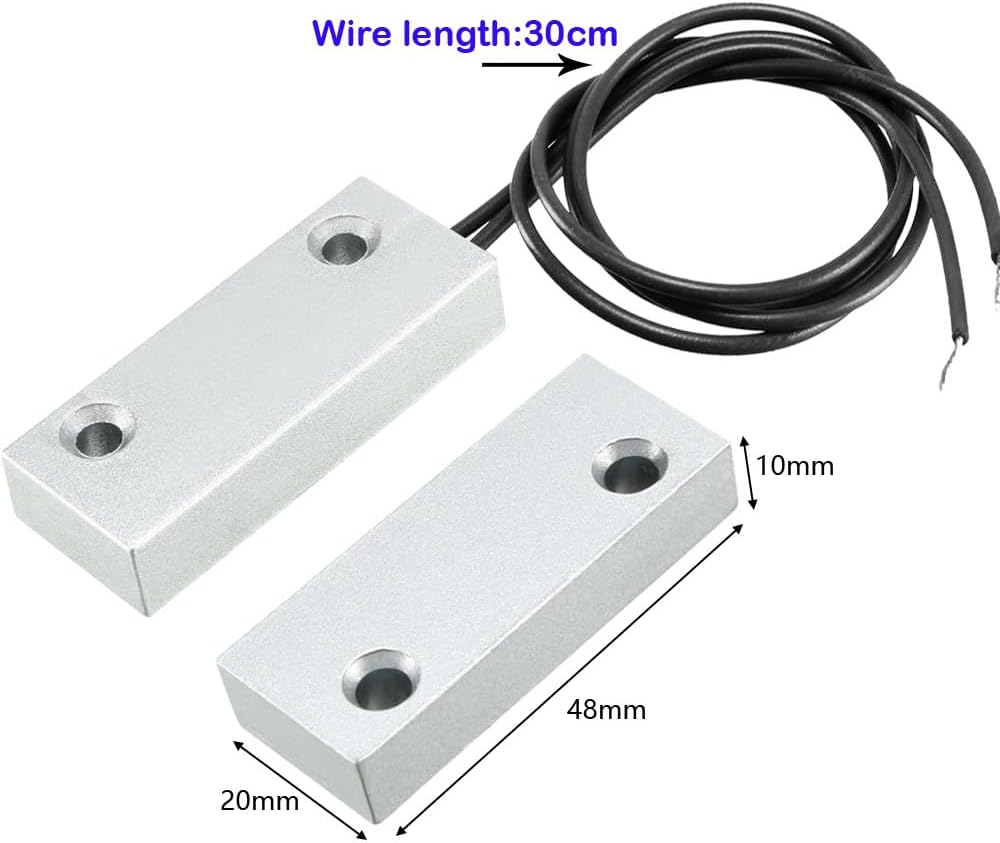

• [Dimension] - Cable Length: 30cm/11.8"; Total Size: 48.7mm x 19.5mm x 10 mm/1.92 x 0.77 x 0.39 inch (L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

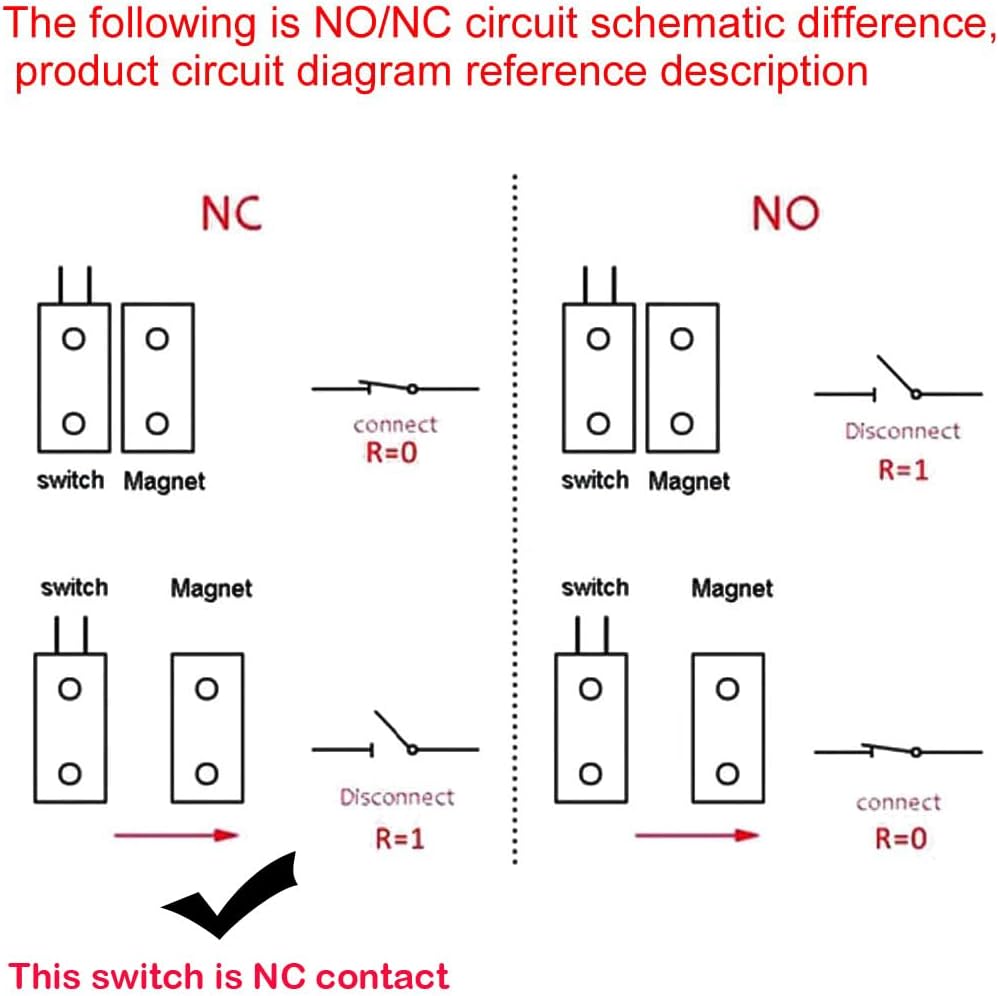

• Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off )
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
