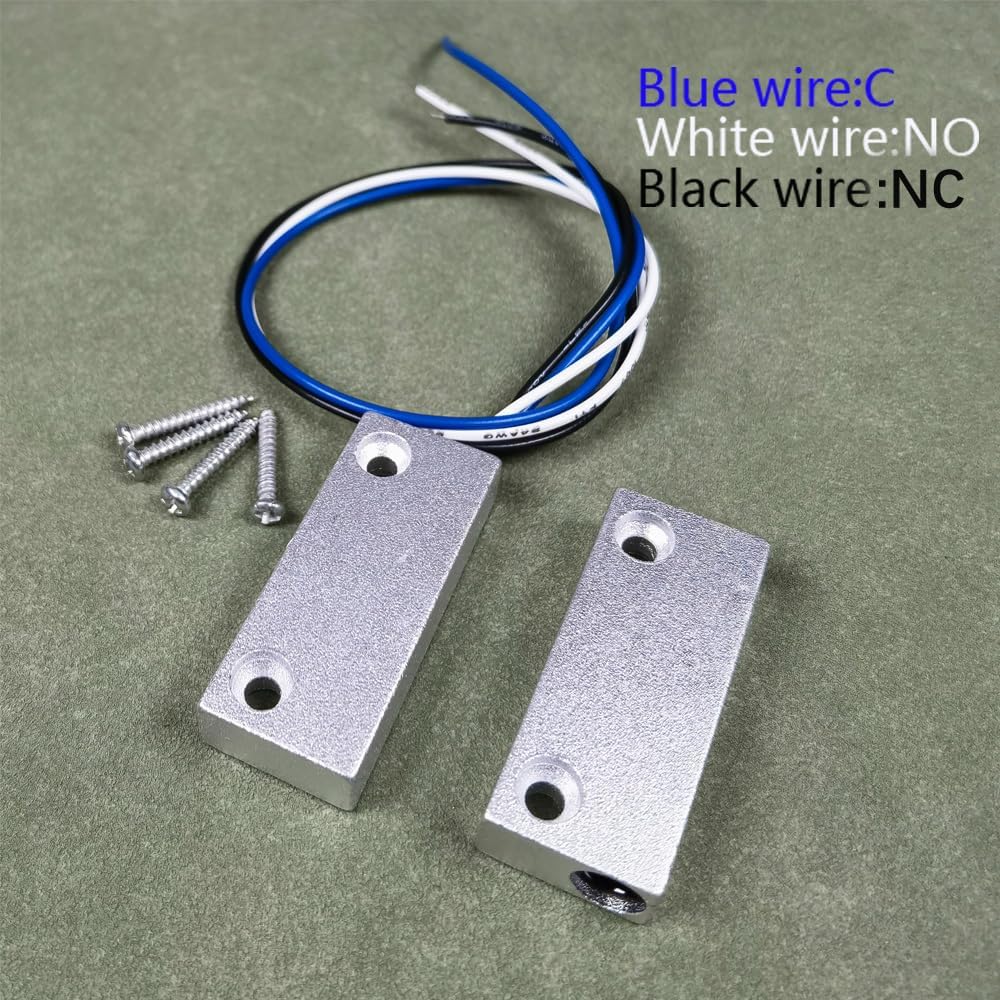

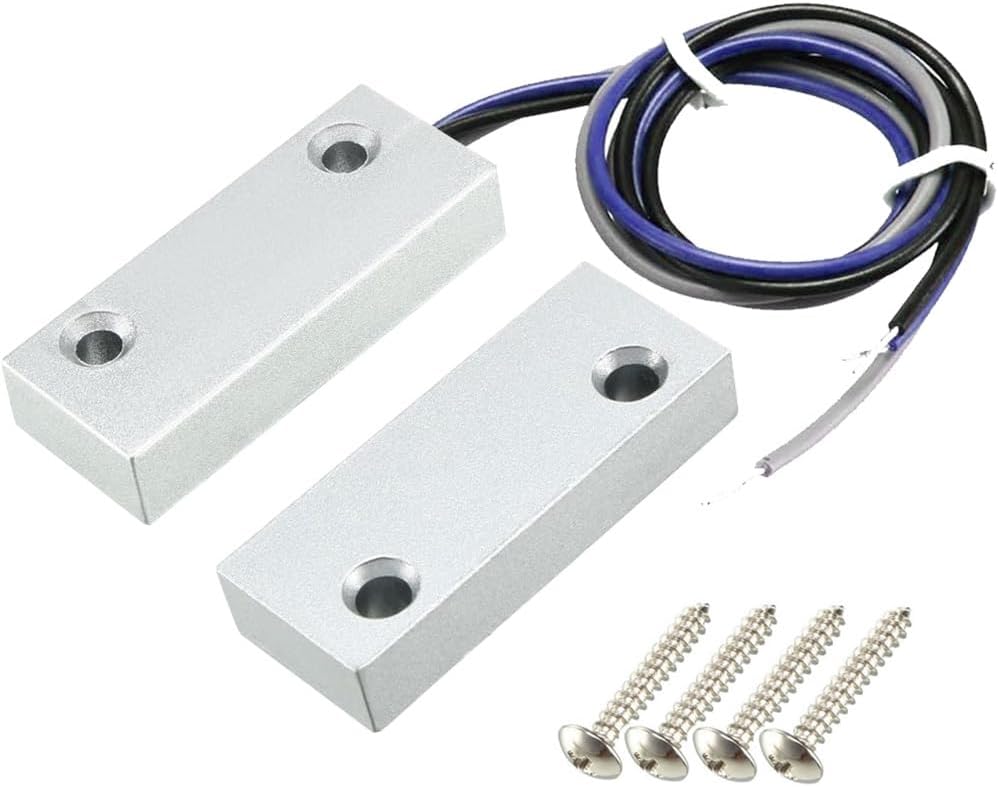

Rolling Door Contact Magnetic Reed Switch Alarm with 3 Wires for N.O./N.C. Applications MC-52

Overview

• Operation Mode : automatic
• Current Rating : 0.5 Amps
• Operating Voltage : 100 Volts
• Contact Type : Normally Open, Normally Closed
• Connector Type : Screw
• Brand : Gebildet
• Terminal : Screw
• Circuit Type : 2-way
• Contact Material : Metal
• Control Method : Sensor
• Switch Type Reed Switch : Mounting Type Flush Mount
• : Switch Type Reed Switch
• : Mounting Type Flush Mount

About this item

• [Specification] - Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 15mm

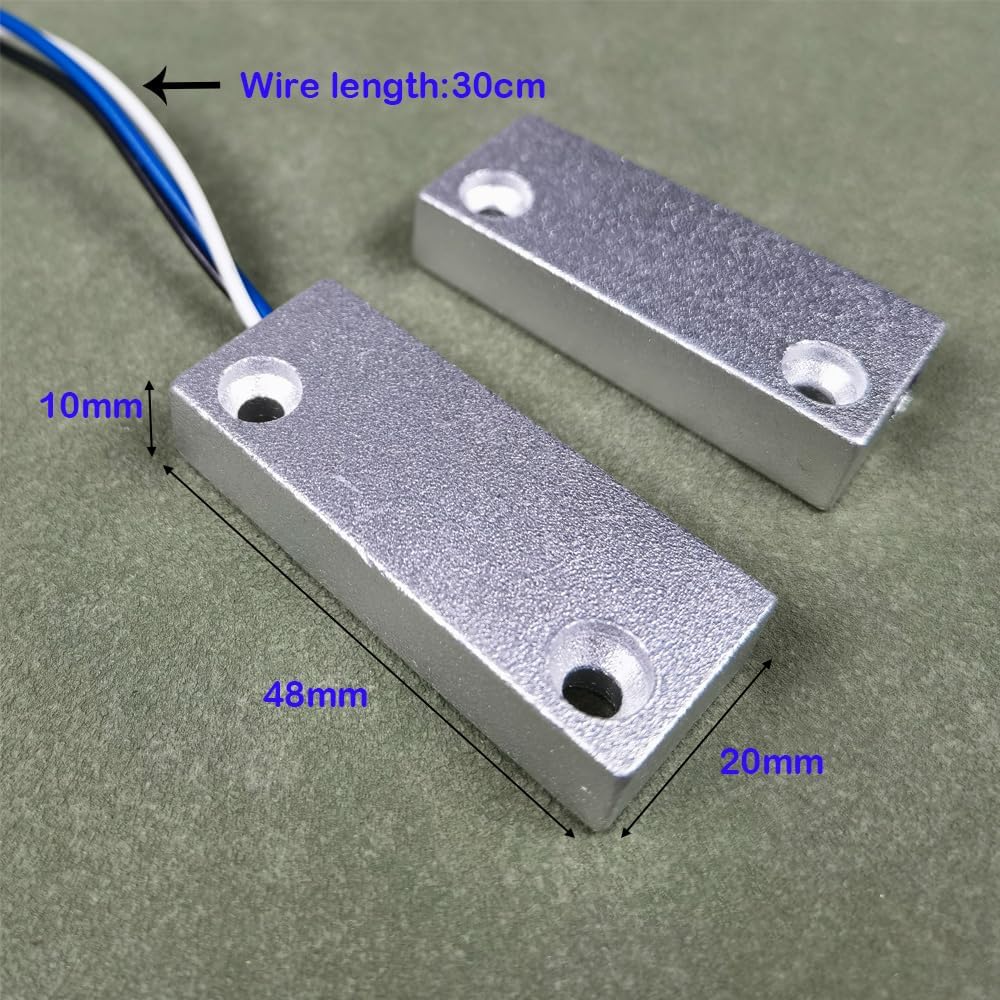

• [Dimension] - Cable Length: 30cm/11.8"; Total Size: 49 x 19.5 x 10mm / 1.93 x 0.77 x 0.39 inch (L*W*H)
• [Material] - The magnetic switch alarm is with durable zinc alloy housing for better rust resistance

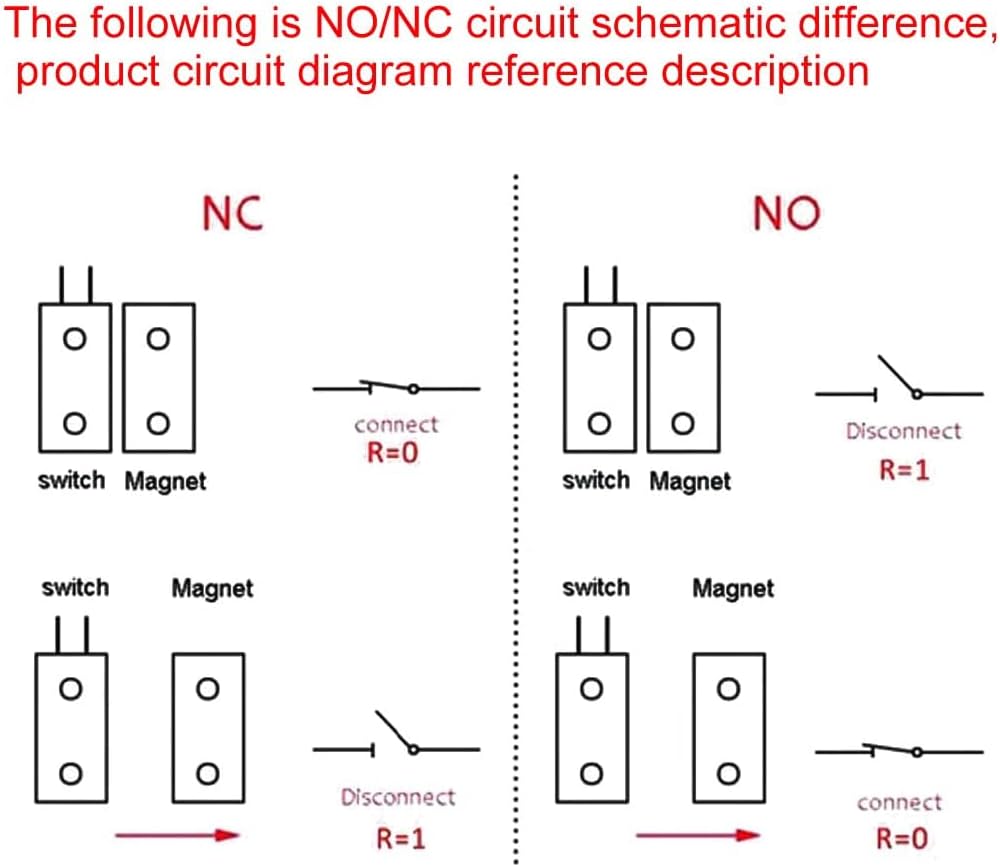

• [N.O./N.C.] - N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). N.O. means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ). When make order, pls check carefully!
• [Applications] - The Rolling Door Contact is designed for use with window and door alarm systems, such as garage, industrial warehouse and shops, etc.
