Item dimensions L x W x H : 2.52 x 0.51 x 0.51 inches
Circuit Type : 1-way
Mounting Type : Surface Mount
Contact Material : Metal
Number of Positions : 5
Switch Type
Magnetic Reed : Material
PVC
: Switch Type
Magnetic Reed
: Material
PVC
About this item

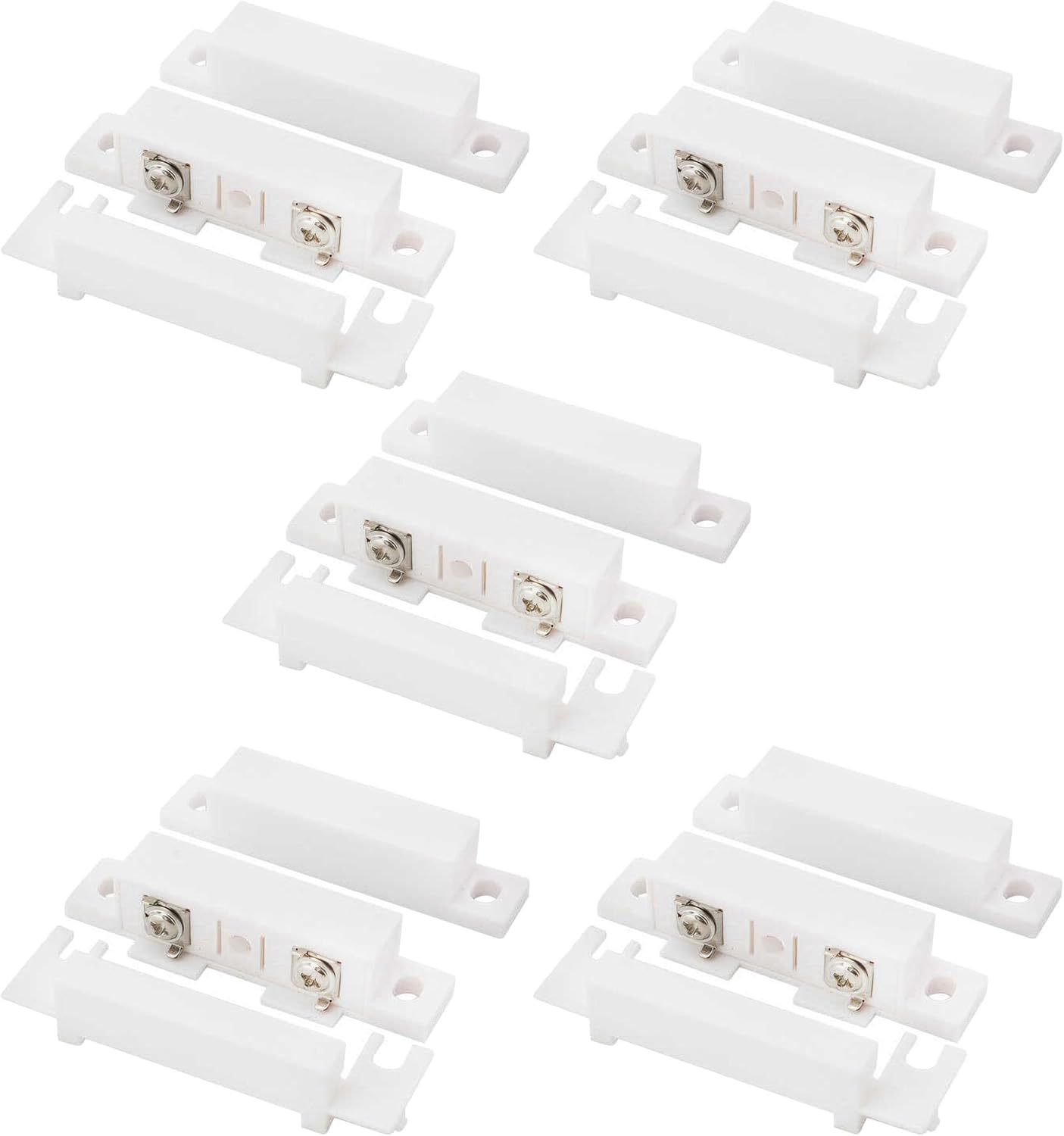

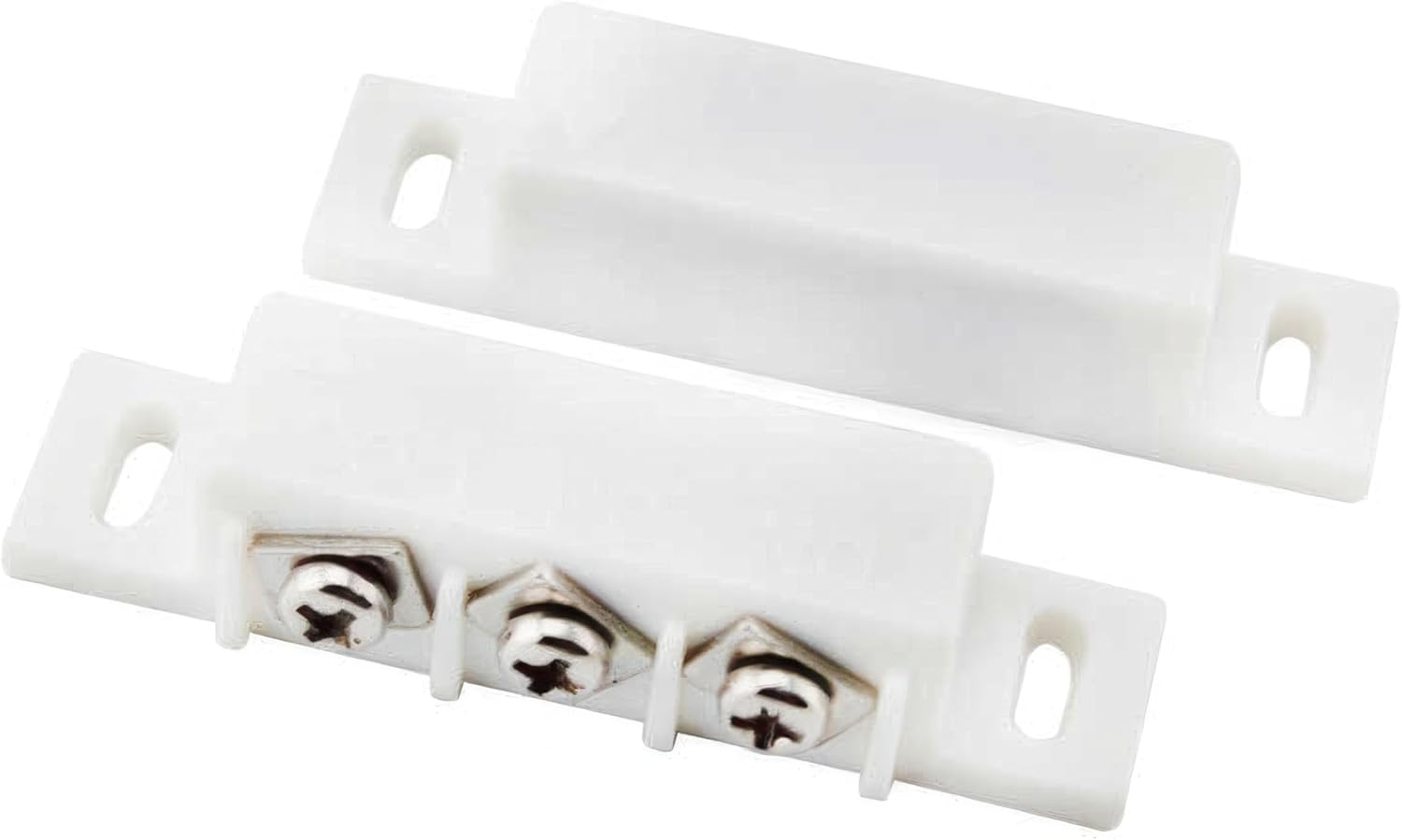

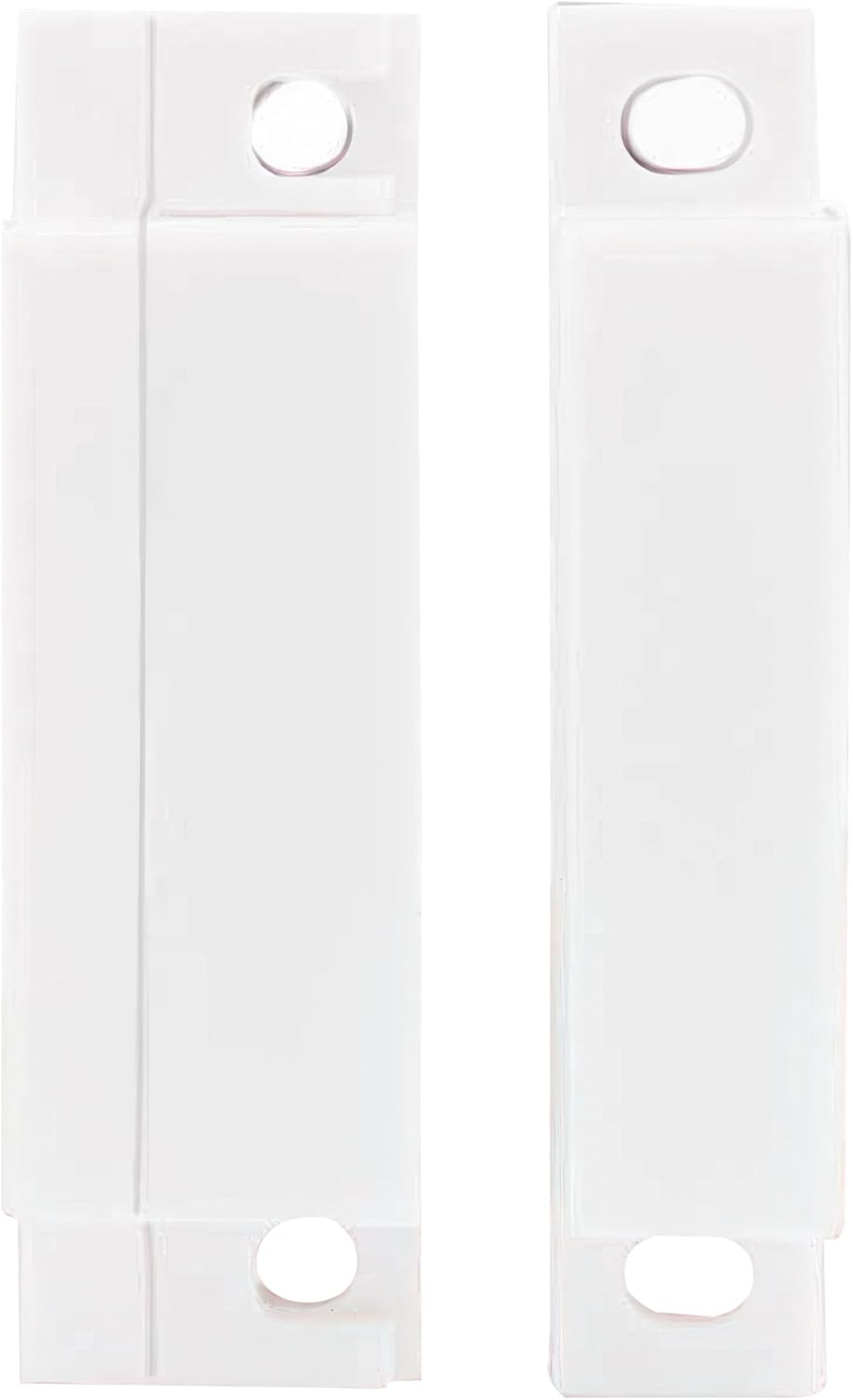

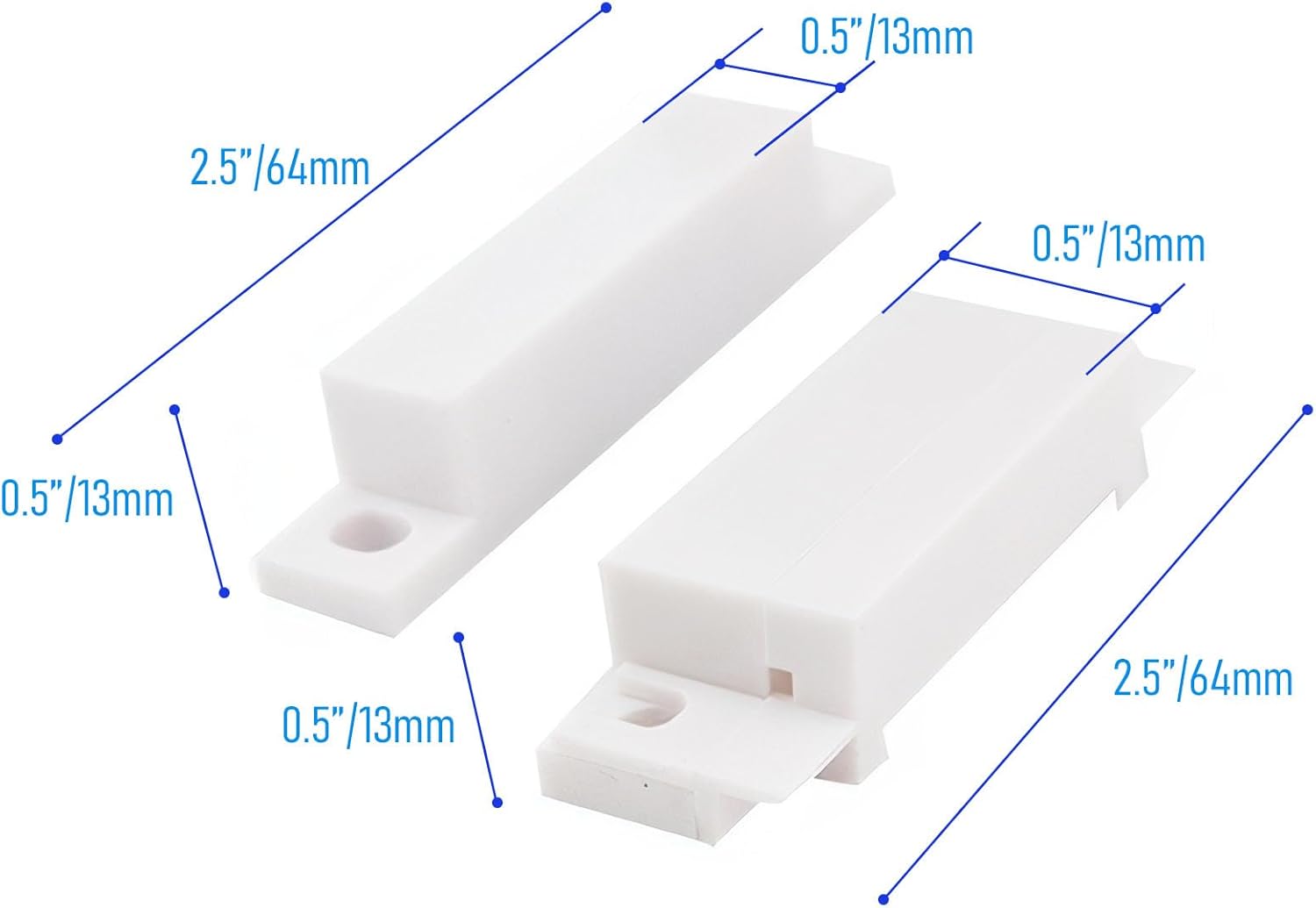

【Size】Body size(approx.): 64*19*13 64*13*13mm(L*W*H), No cable, Action Distance:15-25mm/0.6"-1", package include 5 pairs.
【Material】The Magnetic Switch is made of PVC shell material, resistant to water and durable, not easy to deform.

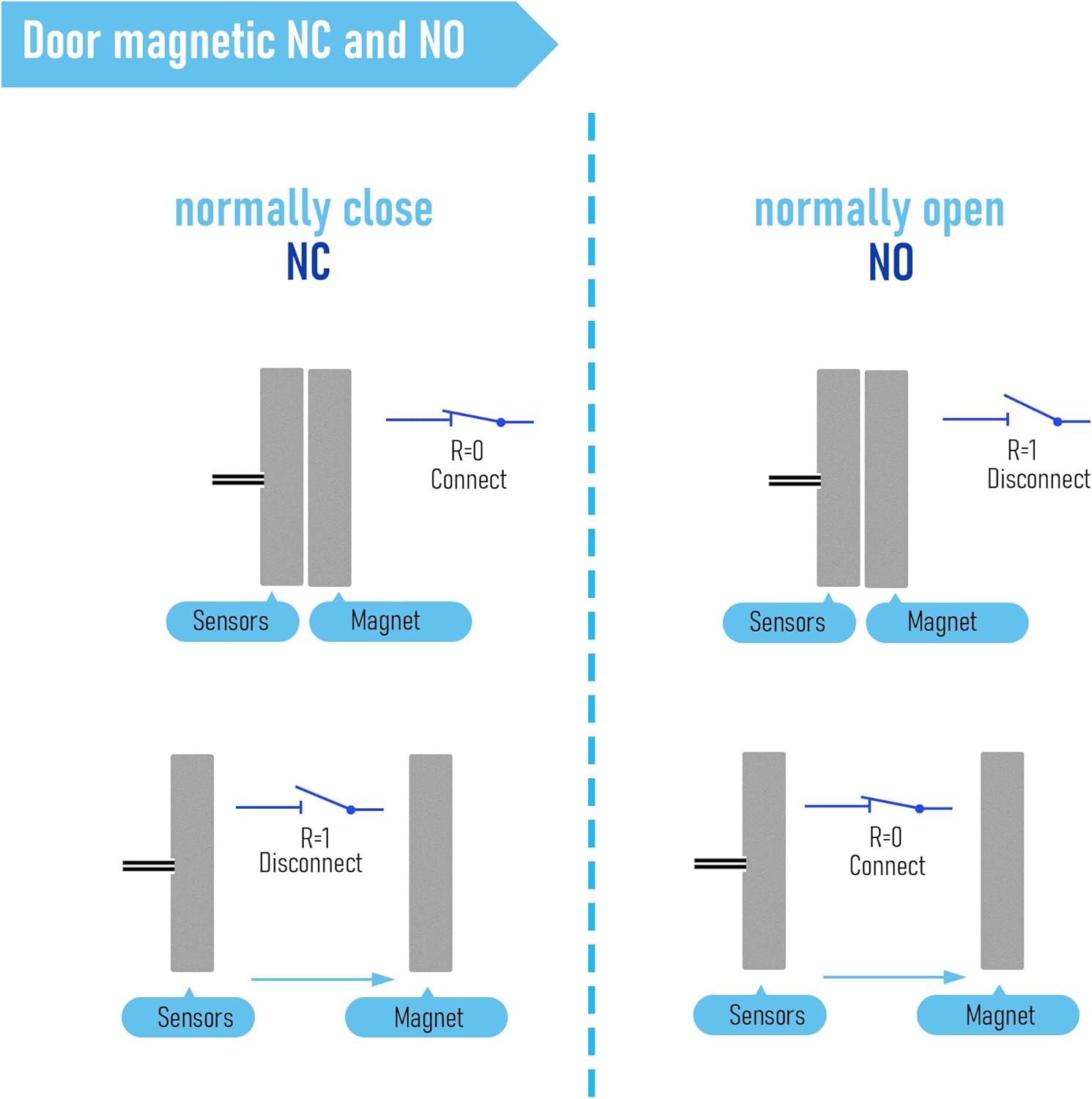

【Normally open (NO)】Normally Open type with 2 wires, When the switch is separated from the magnet, the circuit is conductive(light on); When the switch is close to the magnet, the circuit is not conductive(light off).
【Application】This magnetic contact switch is usually used for metal door/windows include rolling Door. The door contact can be used with an access control or anti-theft alarm system.
【Note】The Magnetic Door Switch must be installed as per the sensing distance. It can only provide a switch signal to the transmitter. It can't directly load the power, nor directly connect the lamp.
