Item dimensions L x W x H : 1.97 x 0.55 x 0.49 inches
Circuit Type : 1-way
Mounting Type : Surface Mount
Contact Material : Metal
Number of Positions : 5
Switch Type
Reed : Material
Acrylonitrile Butadiene Styrene
: Switch Type
Reed
: Material
Acrylonitrile Butadiene Styrene
About this item

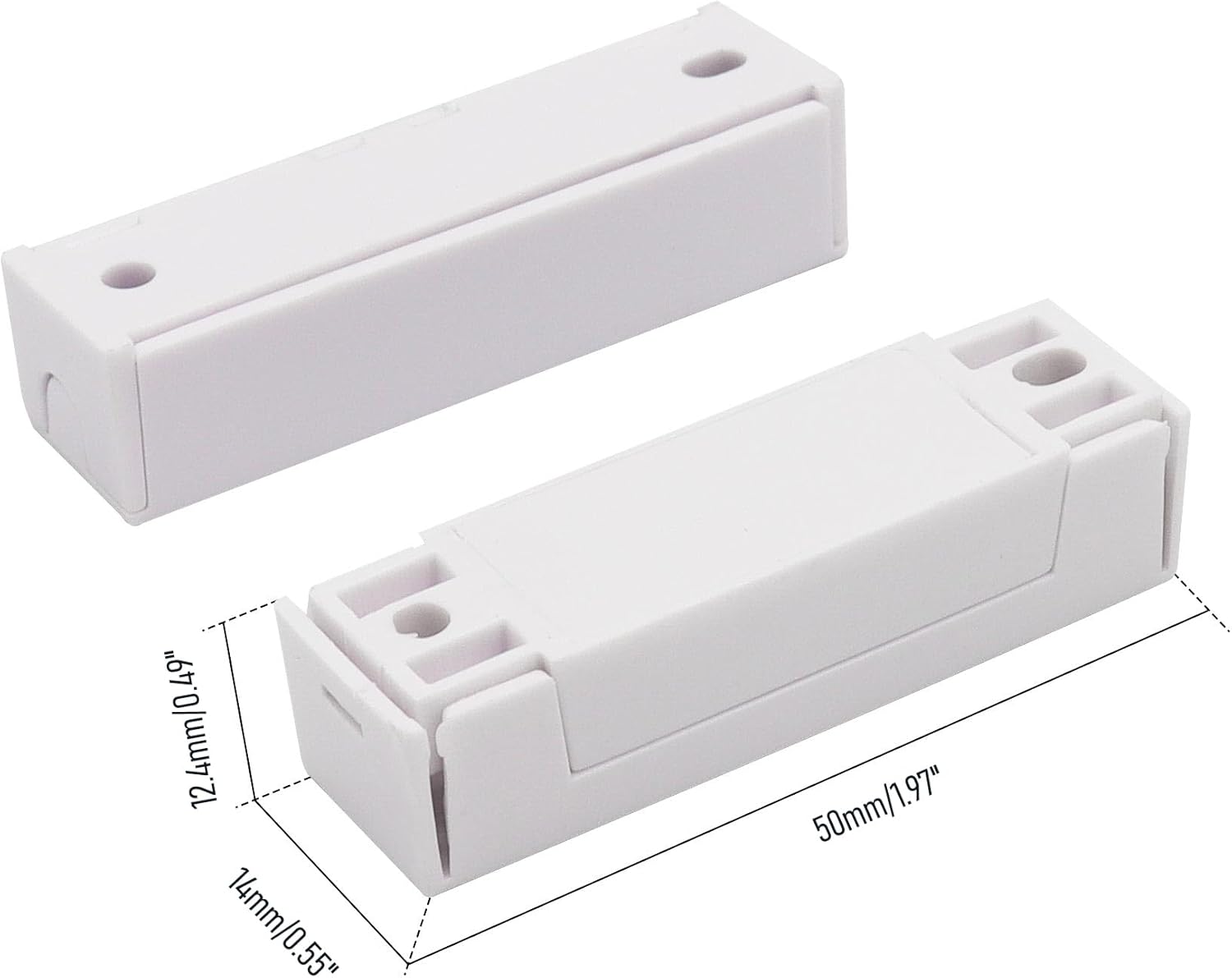

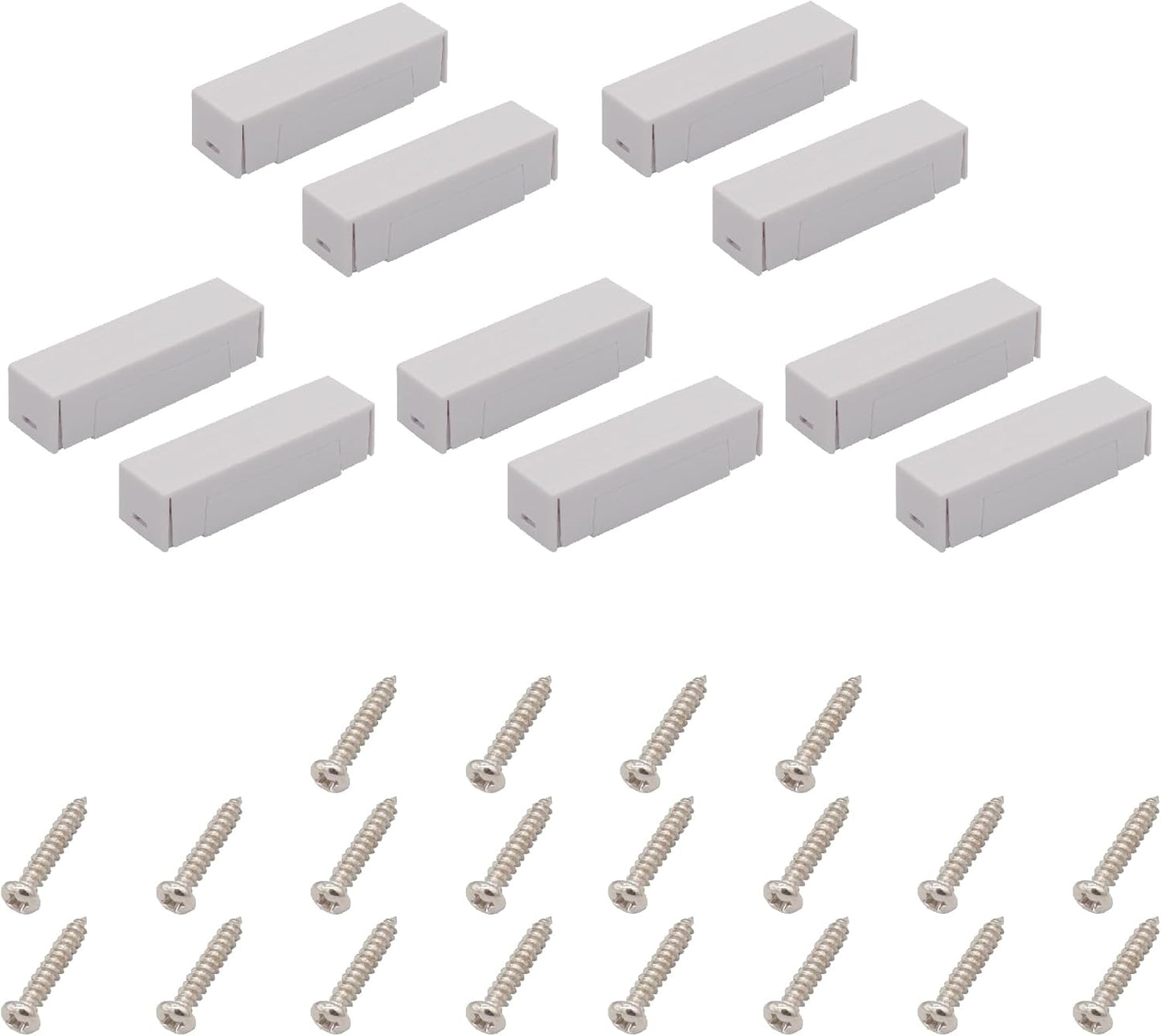

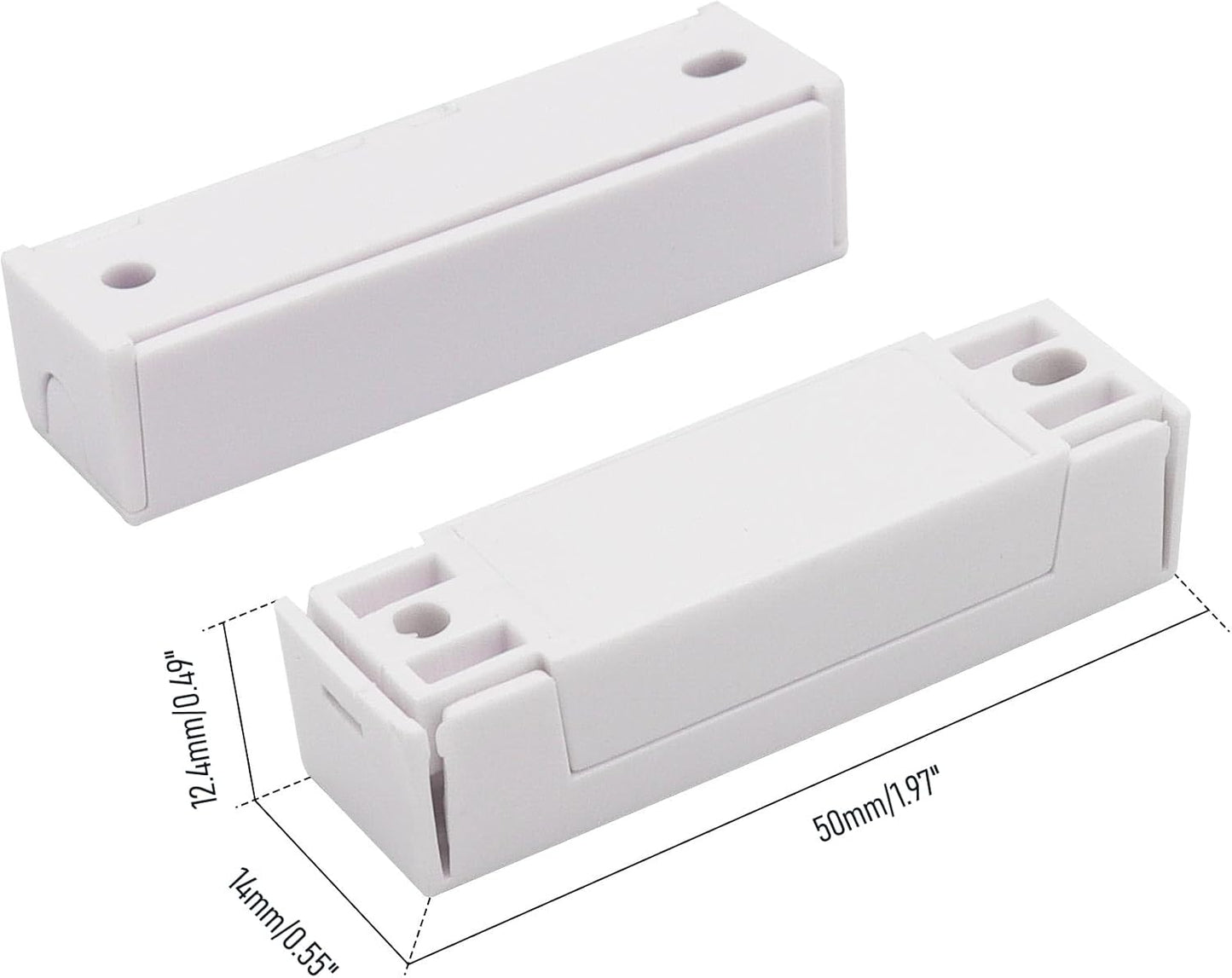

【Size】Body size(approx.): 50*14*12.4 50*14*12.4mm(L*W*H), No cable, Action Distance:25-35mm/1"-1.4", package include 5 pairs.

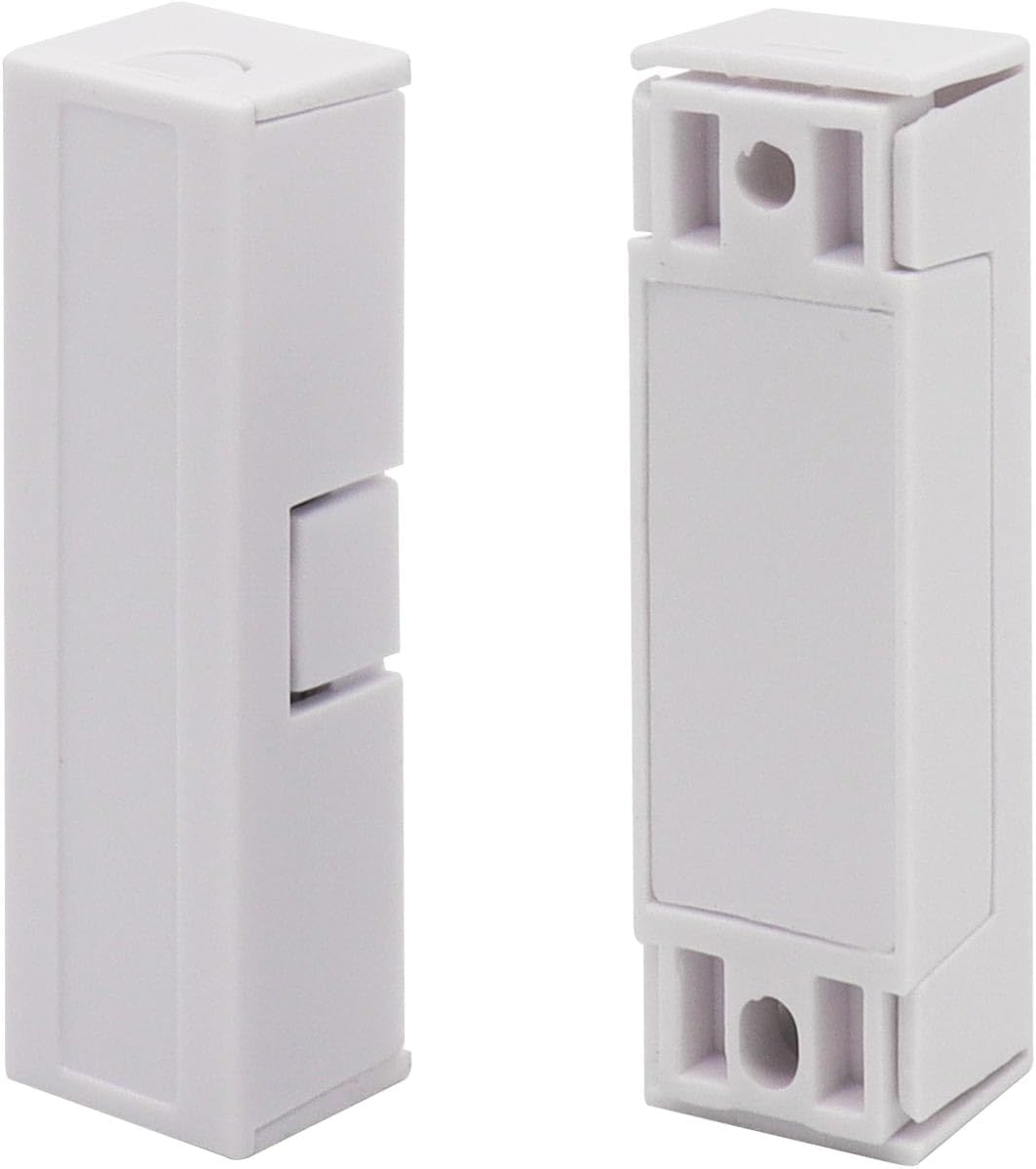

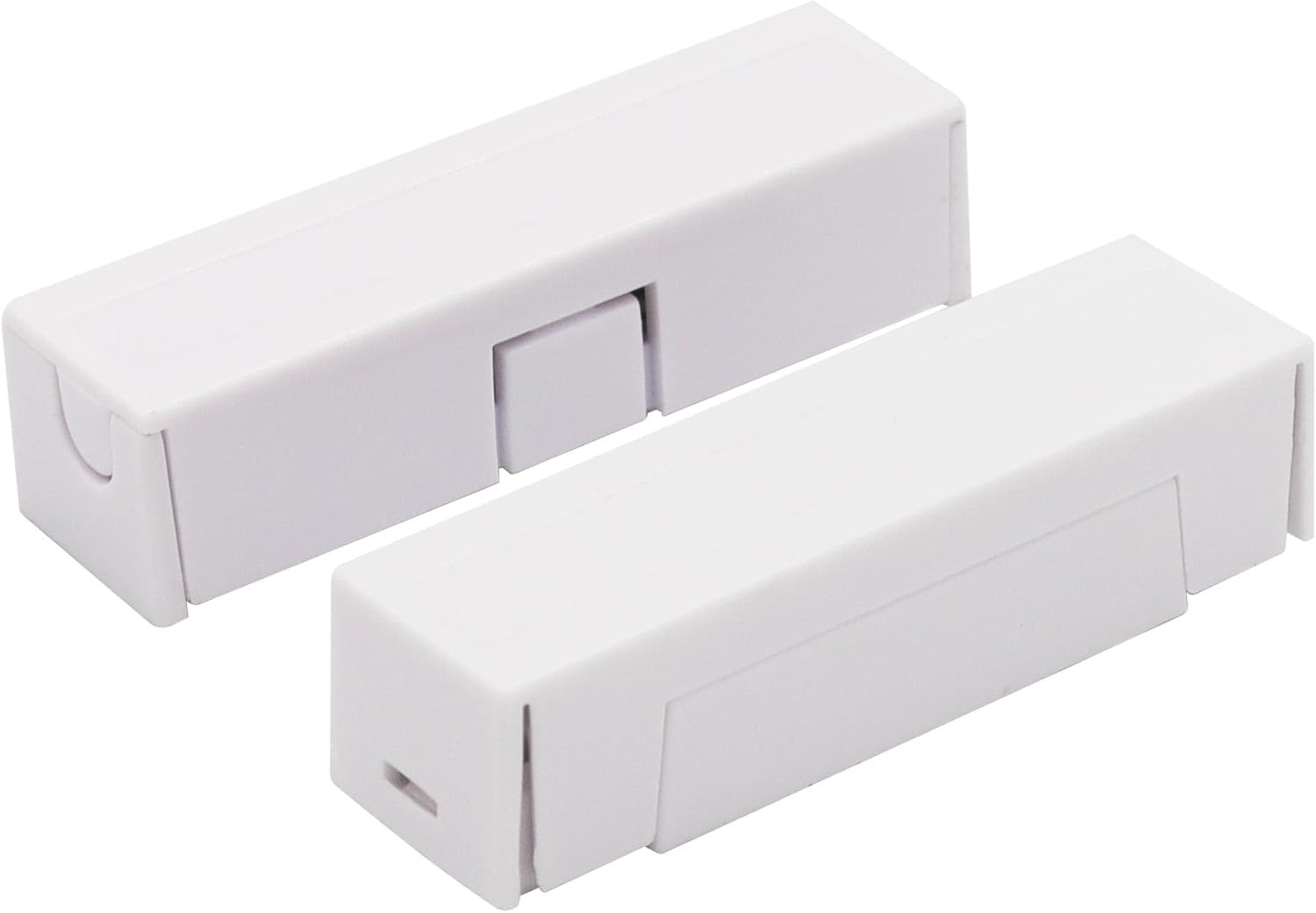

【Material】The Magnetic Switch is made of flame-retardant ABS shell material, resistant to high temperature and not easy to deform.

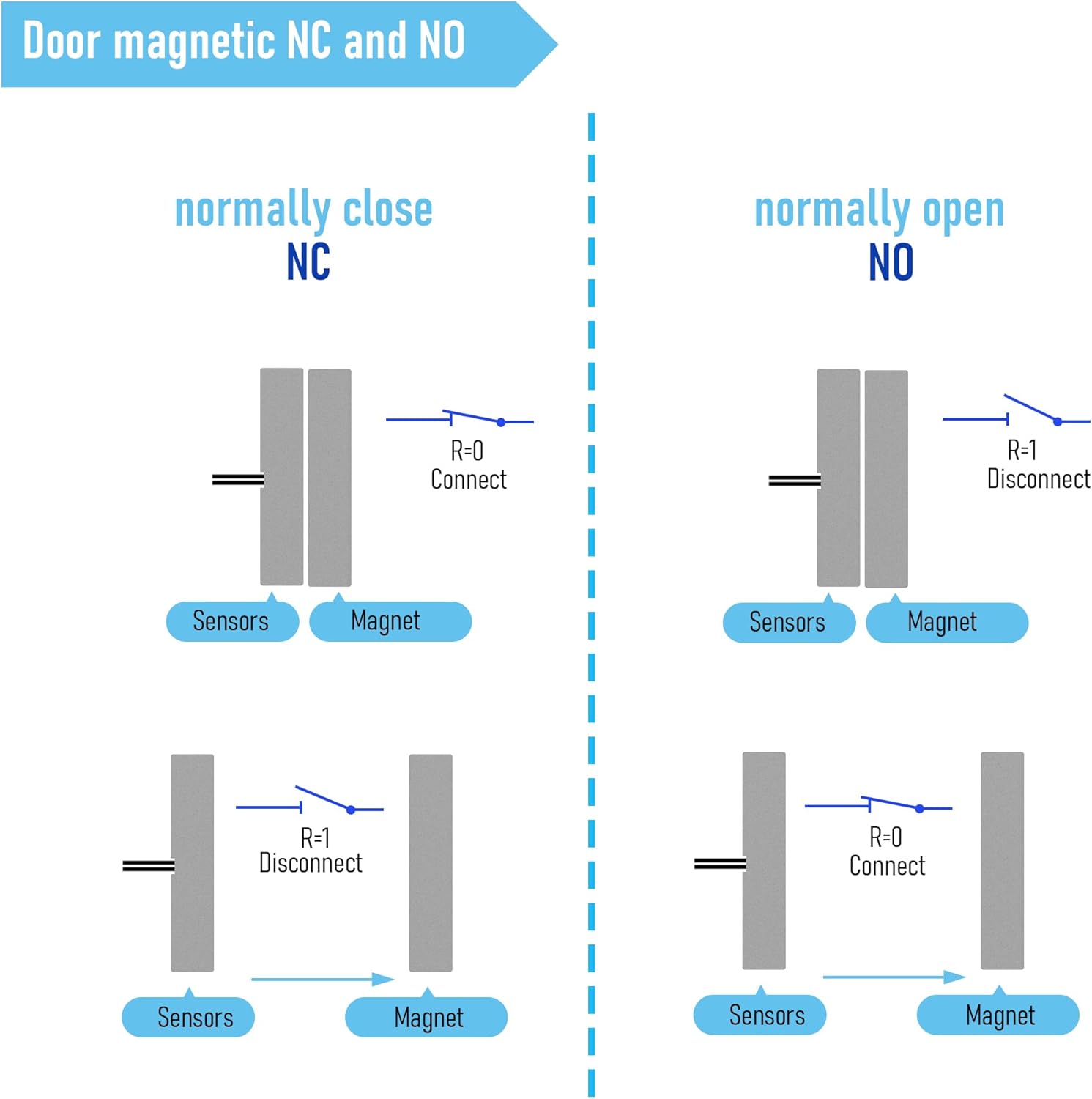

【Normally Closed (NC)】Normally closed type. When the magnet together, the circuit is conductive( light on ); the circuit is not conductive ( light off ) if the magnet separates.

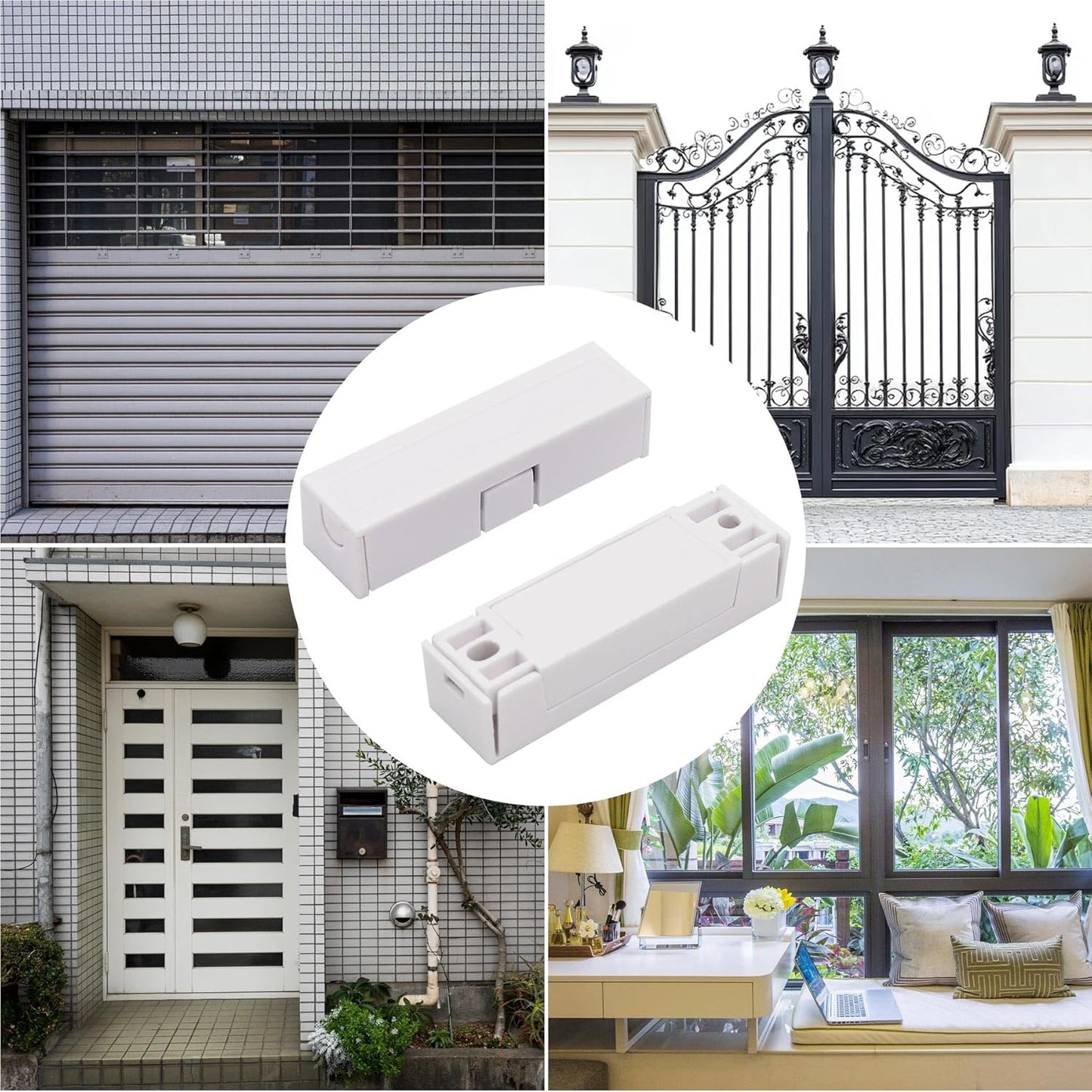

【Application】This magnetic contact switch is usually used for metal door/windows include rolling Door. The door contact can be used with an access control or anti-theft alarm system.
【Note】The Magnetic Door Switch must be installed as per the sensing distance. It can only provide a switch signal to the transmitter. It can't directly load the power, nor directly connect the lamp.
